# FREE COMPUTER TECHNOLOGY, INC.
80486EISA
Processor 80486DX
Processor Speed 33/50MHz
Chip Set Intel
Max. Onboard DRAM 64MB
Cache 256KB
BIOS AMI
Dimensions 355mm x 304mm
I/O Options None
NPU Options 4167

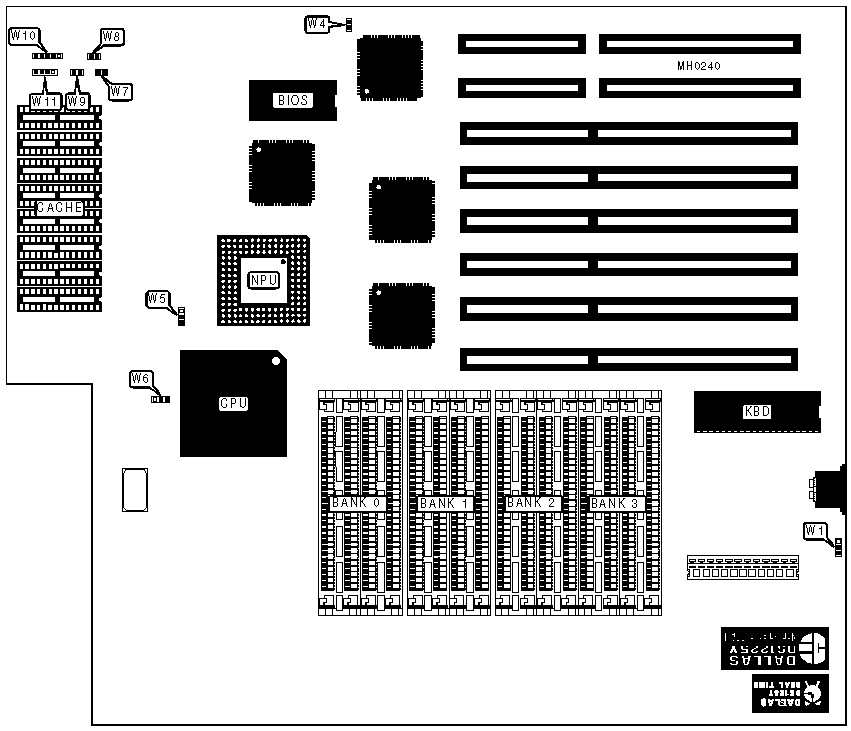

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Reset switch | W7 | Power LED & keylock | W10 |
|----------------+----------+---------------------+----------|
| Turbo switch | W8 | Speaker | W11 |
|----------------+----------+---------------------+----------|
| Turbo LED | W9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Power good signal detect from | W1 | pins 2 & 3 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | W1 | pins 1 & 2 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W4 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W5 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W6 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 1M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 17MB | (4) 4M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 33MB | (4) 4M x 9 | (4) 4M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 49MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
+------------------------------------------------------------+
