# FREE COMPUTER TECHNOLOGY, INC.
CACHE 486 ISA BABY
Processor 80486SX/80487SX/80486DX
Processor Speed 20/25/33MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 64/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

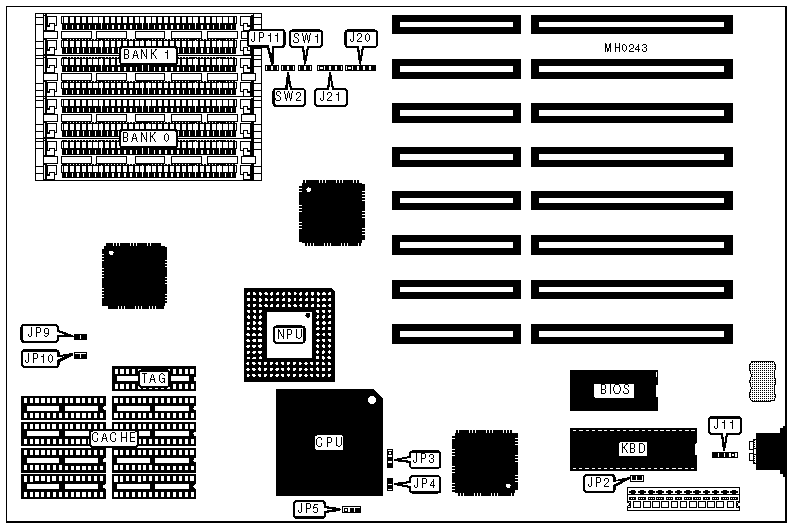

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J11 | Turbo LED | JP11 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J20 | Reset switch | SW1 |
|---------------------+----------+----------------+----------|
| Speaker | J21 | Turbo switch | SW2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| ยป | Monitor type select color | JP2 | Open |
|---+----------------------------------+---------+-----------|
| | Monitor type select monochrome | JP2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1 M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 64KB | (8) 8K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP9 | JP10 |
|-------------------+--------------------+-------------------|
| 64KB | Open | Open |
|-------------------+--------------------+-------------------|
| 256KB | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP3 | JP4 | JP5 |
|----------+-------------------+---------+-------------------|
| 80486SX | Open | Open | pins 2 & 3 closed |
|----------+-------------------+---------+-------------------|
| 80487SX | pins 1 & 2 closed | Closed | pins 1 & 2 closed |
|----------+-------------------+---------+-------------------|
| 80486DX | pins 2 & 3 closed | Closed | pins 1 & 2 closed |
+------------------------------------------------------------+
