# EFA CORPORATION
ECA 3M20
Processor 80386SX
Processor Speed 20/25MHz
Chip Set OPTI
Max. Onboard DRAM 16MB
Cache None
BIOS AMI
Dimensions 230mm x 217mm
I/O Options None
NPU Options 80387SX

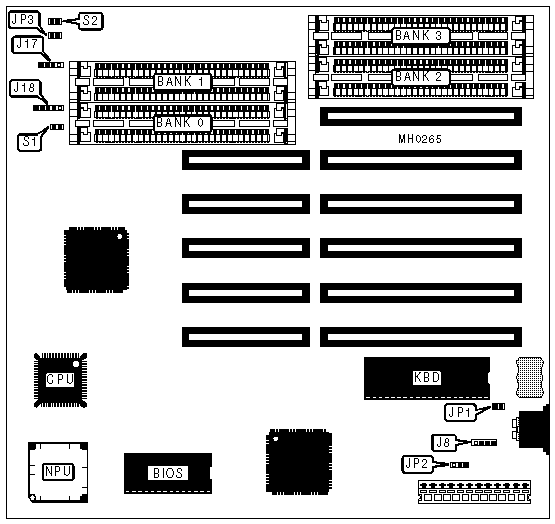

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J8 | Turbo LED | JP3 |
|---------------------+----------+----------------+----------|
| Speaker | J17 | Reset switch | S1 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J18 | Turbo switch | S2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP2 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
+------------------------------------------------------------+
