# EVEREX SYSTEMS, INC.
386SX-16/20
Processor 80386SX
Processor Speed 16/20MHz
Chip Set Suntac
Max. Onboard 8MB
DRAM
Cache None
BIOS AMI
Dimensions 355mm x 304mm
I/O Options VGA port, VGA feature connector, parallel
port, serial ports (2)
NPU Options 80387SX

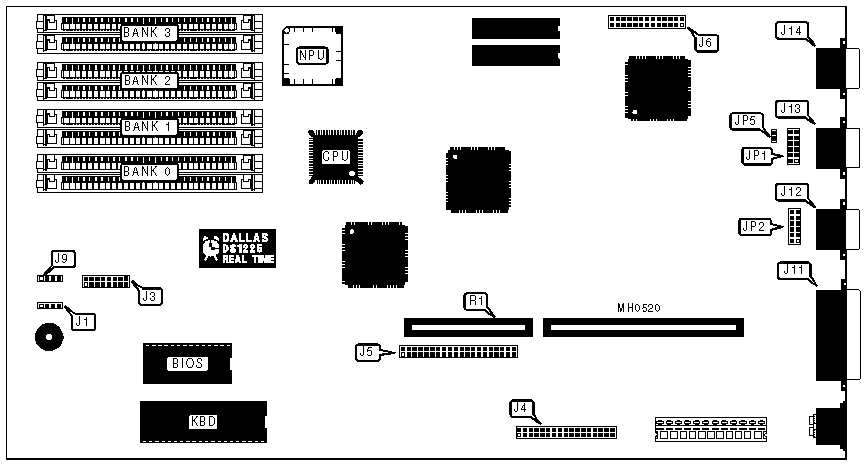

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| IDE interface LED | J1 | Serial port 2 | J12 |
|----------------------+----------+---------------+----------|
| Front panel display | J3 | Serial port 1 | J13 |
|----------------------+----------+---------------+----------|
| VGA feature | J6 | VGA port | J14 |
| connector | | | |
|----------------------+----------+---------------+----------|
| Speaker | J9 | Riser card | R1 |
| enable/disable | | | |
| switch | | | |
|----------------------+----------+---------------+----------|
| Parallel port | J11 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------+-----------+-------------|
| » | Onboard VGA enabled | JP5 | Closed |
|---+------------------------------+-----------+-------------|
| | Onboard VGA disabled | JP5 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM1 | JP1 |
|---------+--------------------------------------------------|
| » | DTE | pins 1 & 12, 2 & 11, 3 & 10, 4 & 9, 5 & 8, and 6 |
| | | & 7 closed |
|---+-----+--------------------------------------------------|
| | DCE | pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, and 11 |
| | | & 12 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM2 | JP2 |
|---------+--------------------------------------------------|
| » | DTE | pins 1 & 12, 2 & 11, 3 & 10, 4 & 9, 5 & 8, and 6 |
| | | & 7 closed |
|---+-----+--------------------------------------------------|
| | DCE | pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, and 11 |
| | | & 12 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
