# EVERSOURCE COMPUTERS, INC.
OP496PI 486DX/SX
Processor 80486SX/80486DX
Processor Speed 25/33/40MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 230mm x 220mm
I/O Options None
NPU Options None

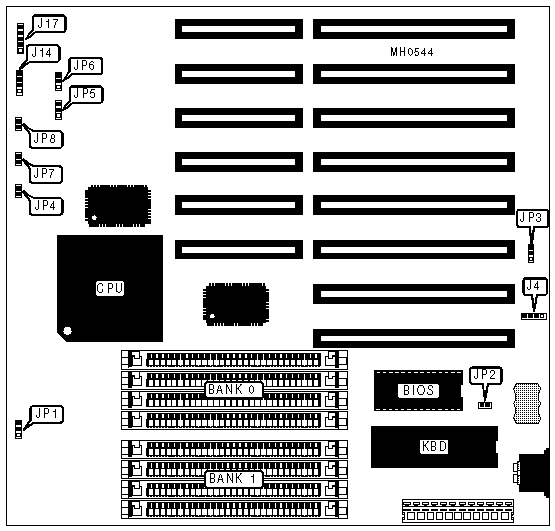

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J4 | Turbo switch | JP4 |
|---------------------+----------+----------------+----------|
| Speaker | J14 | Turbo LED | JP7 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J17 | Reset switch | JP8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | JP2 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP2 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP3 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP3 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1 M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP1 | JP5 | JP6 |
|---------+----------------+----------------+----------------|
| 80486SX | Open | Open | pins 2 & 3 |
| | | | closed |
|---------+----------------+----------------+----------------|
| 80487SX | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|---------+----------------+----------------+----------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
