# HYUNDAI ELECTRONICS, INC.
SUPER 286N
Processor 80286
Processor Speed 12MHz
Chip Set C & T
Max. Onboard 4MB (on CPU/NPU card)
DRAM
Cache None
BIOS Award
Dimensions 350mm x 304mm
I/O Options Floppy drive interface, parallel port,
proprietary CPU/NPU card serial port
NPU Options 80287 (on CPU/NPU card)
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Serial port | J2 | Keyboard & power | J5 |
| | | good signal | |
|---------------+----------+----------------------+----------|
| Parallel port | J3 | Floppy drive | J12 |
| | | interface | |
|------------------------------------------------------------|
| Note:Jumper J5 connects to jumper J5 on the CPU card. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+---------+-------------|
| » | Serial port select COM1 | J6 & J7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+---------+-------------|
| | Serial port select COM2 | J6 & J7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+---------+-------------|
| | Serial port disabled | J6 & J7 | Open |
|---+--------------------------------+---------+-------------|
| » | Parallel port select LPT1 | J8 & J9 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+---------+-------------|
| | Parallel port select LPT2 | J8 & J9 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+---------+-------------|
| | Parallel port disabled | J8 & J9 | Open |
|---+--------------------------------+---------+-------------|
| » | Floppy drive interface enabled | J10 | Closed |
|---+--------------------------------+---------+-------------|
| | Floppy drive interface enabled | J10 | Open |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+

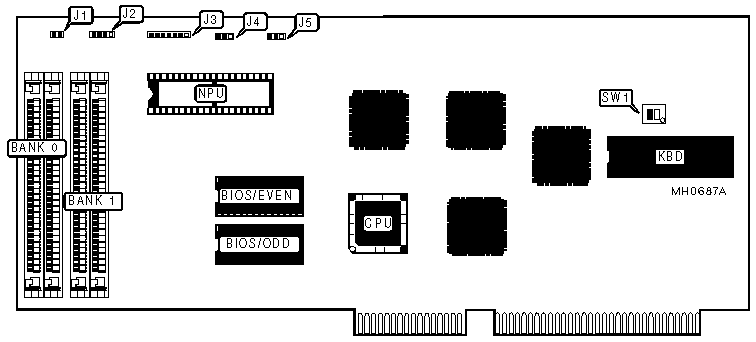

| CONNECTIONS (CPU CARD) |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Speaker | J1 | Keylock | J3 pins |
| | | | 4 & 5 |
|------------------+----------+-------------------+----------|
| External battery | J2 | Reset switch | J3 pins |
| | | | 6 & 7 |
|------------------+----------+-------------------+----------|
| Turbo LED | J3 pins | Keyboard & power | J5 |
| | 1 - 3 | good signal | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (CPU CARD) |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | J4 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | J4 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CPU CARD) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 640KB | (2) 256K x 9 | (2) 64K x 9 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION (CPU CARD) |
|------------------------------------------------------------|
| Size | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| 640KB | Off | On |
|--------------------+-------------------+-------------------|
| 1MB | Off | Off |
|--------------------+-------------------+-------------------|
| 2MB | On | On |
|--------------------+-------------------+-------------------|
| 4MB | On | On |
+------------------------------------------------------------+
