# HYUNDAI ELECTRONICS, INC.
SUPER 386S/20L
Processor 80386SX
Processor Speed 20MHz
Chip Set Headland
Max. Onboard 8MB
DRAM
Cache None
BIOS Award
Dimensions 330mm x 218mm
I/O Options Bus mouse port, floppy drive interface, IDE
interface, serial port, parallel port, video
port (TTL), VGA port, video feature port
(8514)
NPU Options 80387SX

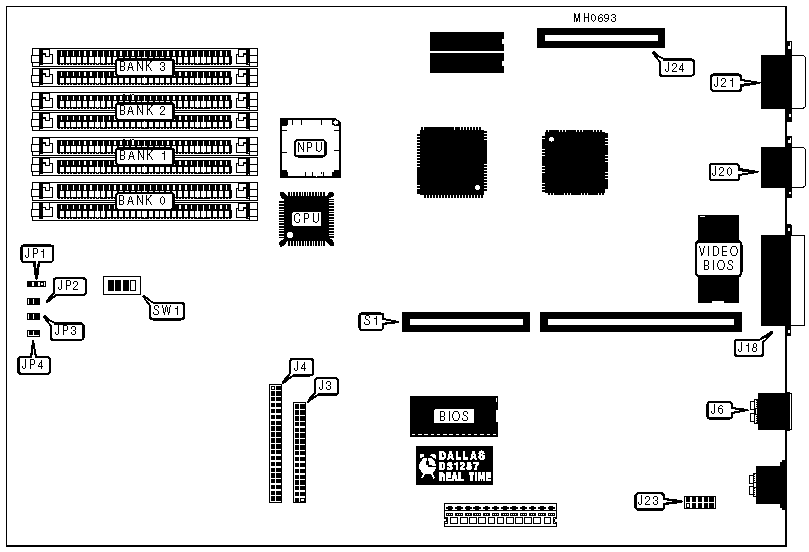

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Floppy drive | J3 | Video feature | J24 |
| interface | | port (8514) | |
|-------------------+----------+------------------+----------|
| IDE interface | J4 | Turbo LED | JP1 |
|-------------------+----------+------------------+----------|
| Bus mouse port | J6 | IDE interface | JP2 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Parallel port | J18 | Speaker | JP3 |
|-------------------+----------+------------------+----------|
| Serial port | J20 | Reset switch | JP4 |
|-------------------+----------+------------------+----------|
| VGA port | J21 | Riser card | S1 |
|-------------------+----------+------------------+----------|
| Video port (TTL) | J23 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Switch | Position |
|----------------------------------------+--------+----------|
| » | Monitor type select color | SW1/1 | On |
|---+------------------------------------+--------+----------|
| | Monitor type select monochrome | SW1/1 | Off |
|---+------------------------------------+--------+----------|
| » | Video feature port (8514) disabled | SW1/4 | On |
|---+------------------------------------+--------+----------|
| | Video feature port (8514) enabled | SW1/4 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+------------+-------------+-------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|------+------------+-------------+-------------+------------|
| 3MB | (2) 1M x 9 | (2) 256K x | (2) 256K x | NONE |
| | | 9 | 9 | |
|------+------------+-------------+-------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|------+------------+-------------+-------------+------------|
| 5MB | (2) 1M x 9 | (2) 1M x 9 | (2) 256K x | (2) 256K x |
| | | | 9 | 9 |
|------+------------+-------------+-------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|------+------------+-------------+-------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/2 | SW1/3 |
|-------------------------+-----------------+----------------|
| On board video enabled | On | Off |
|-------------------------+-----------------+----------------|
| On board video disabled | Off | On |
+------------------------------------------------------------+
