# HYUNDAI ELECTRONICS, INC.
SUPER 286C (REV. C THRU F8)
Processor 80286
Processor Speed 10MHz
Chip Set VLSI
Max. Onboard DRAM 1MB
Cache None
BIOS Award
Dimensions 355mm x 304mm
I/O Options Serial port, parallel port, floppy drive
interface
NPU Options 80287

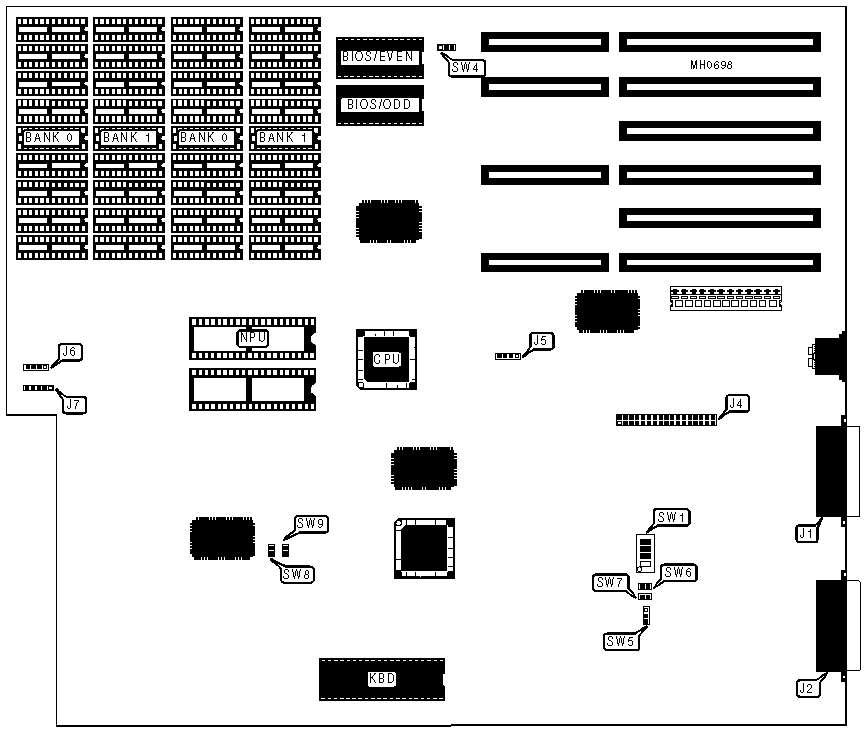

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Serial port | J1 | Speaker | J6 |
|------------------+----------+-------------------+----------|
| Parallel port | J2 | Power LED & | J7 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| External battery | J5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | CPU speed select 10MHz | SW1/3 | On |
|---+---------------------------+---------------+------------|
| | CPU speed select 8MHz | SW1/3 | Off |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | SW1/4 | On |
|---+---------------------------+---------------+------------|
| | Monitor type select | SW1/4 | Off |
| | monochrome | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW2 | pins 1 & 2 |
| | not alter | | closed |
|---+---------------------------+---------------+------------|
| » | CS ROM | SW3 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | XMEMR | SW3 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | BIOS type select 27256 | SW4 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS type select 27128 | SW4 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Floppy drive mode select | SW5 | pins 1 & 2 |
| | single speed | | closed |
|---+---------------------------+---------------+------------|
| | Floppy drive mode select | SW5 | pins 2 & 3 |
| | dual speed | | closed |
|---+---------------------------+---------------+------------|
| » | COM1 enabled (IRQ4) | SW6 & SW9 | Closed |
|---+---------------------------+---------------+------------|
| | COM1 disabled | SW6 & SW9 | Open |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW7 | Closed |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW8 | Closed |
| | not alter | | |
|------------------------------------------------------------|
| Note:The locations of SW2 & SW3 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 512KB | (18) 41256 | NONE |
|------------------+--------------------+--------------------|
| 640KB | (18) 41256 | (18) 4164 |
|------------------+--------------------+--------------------|
| 1MB | (18) 41256 | (18) 41256 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/switch 1 | SW1/switch 2 |
|------------------+--------------------+--------------------|
| 512KB | Off | On |
|------------------+--------------------+--------------------|
| 640KB | On | Off |
|------------------+--------------------+--------------------|
| 1MB | Off | Off |
+------------------------------------------------------------+
