# EMPAC INTERNATIONAL
ERI MagnumCache386 RDX
Processor 80386DX
Processor Speed 33MHz
Chip Set C & T
Max. Onboard DRAM 64MB
Cache None
BIOS AMI
Dimensions 330mm x 221mm
I/O Options None
NPU Options 80387/3167

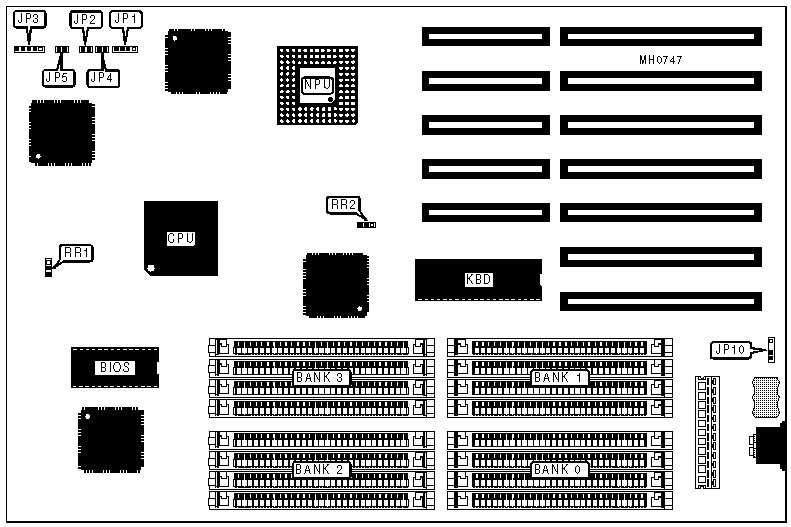

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Speaker | JP1 | Turbo switch | JP4 |
|-------------------+----------+------------------+----------|
| Turbo LED | JP2 | Reset switch | JP5 |
|-------------------+----------+------------------+----------|
| Power LED & | JP3 | External battery | JP10 |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| » | Monitor type select color | RR1 | Closed |
|---+----------------------------------+---------+-----------|
| | Monitor type select monochrome | RR1 | Open |
|---+----------------------------------+---------+-----------|
| » | BIOS shadow enabled | RR2 | Closed |
|---+----------------------------------+---------+-----------|
| | BIOS shadow disabled | RR2 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (4) 256K x | (4) 256K x | (4) 256K x | NONE |
| | 9 | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 1M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | NONE |
| | | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 7MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | (4) 256K x |
| | | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | (4) 256K x |
| | | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 17MB | (4) 4M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 18MB | (4) 4M x 9 | (4) 256K x | (4) 256K x | NONE |
| | | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 19MB | (4) 4M x 9 | (4) 256K x | (4) 256K x | (4) 256K x |
| | | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 21MB | (4) 4M x 9 | (4) 1M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 22MB | (4) 4M x 9 | (4) 1M x 9 | (4) 256K x | (4) 256K x |
| | | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 24MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 25MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 28MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 33MB | (4) 4M x 9 | (4) 4M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 34MB | (4) 4M x 9 | (4) 4M x 9 | (4) 256K x | (4) 256K x |
| | | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 37MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 40MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 49MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
