# HORNET TECHNOLOGY CORPORATION
386SX
Processor 80386SX
Processor Speed 16/20MHz
Chip Set TI
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 16-bit external memory card slot
NPU Options 80387SX

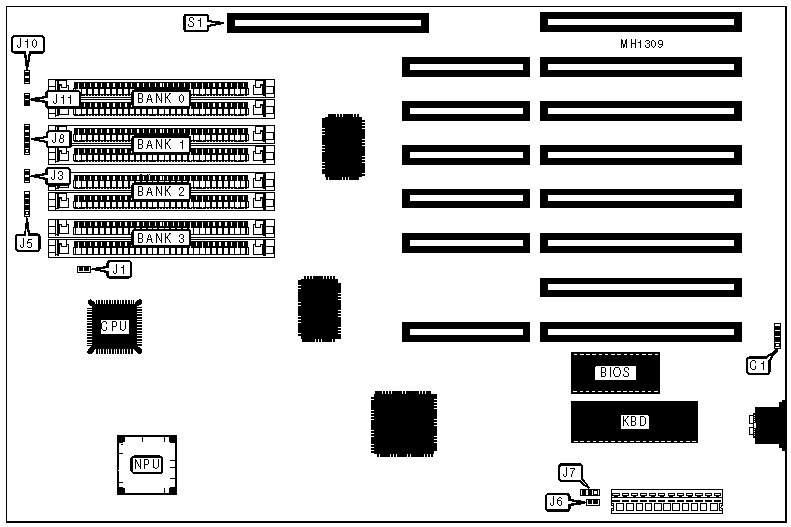

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | C1 | Turbo switch | J10 |
|------------------+----------+-------------------+----------|
| Reset switch | J3 | Turbo LED | J11 |
|------------------+----------+-------------------+----------|
| External battery | J5 | 16-bit external | S1 |
| | | memory card | |
|------------------+----------+-------------------+----------|
| Speaker | J8 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | J1 | unknown |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Power on self test disabled | J6 | open |
|---+----------------------------------+--------+------------|
| | Power on self test enabled | J6 | connected |
|---+----------------------------------+--------+------------|
| » | Monitor type select monochrome | J7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select color | J7 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 32MB | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
