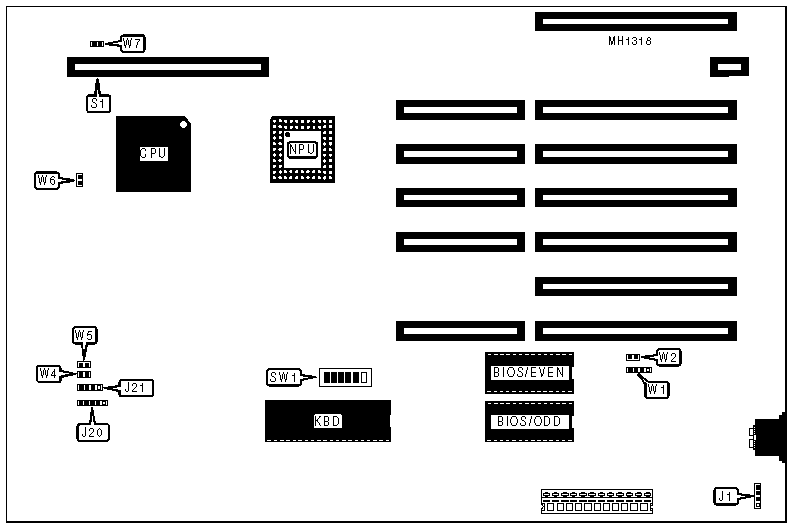

# HAWK COMPUTERS
386SFP
Processor 80386DX
Processor Speed 20/25MHz
Chip Set C & T
Max. Onboard DRAM 8MB (on 32-bit system memory card)
SRAM Cache None
BIOS Award/Phoenix
Dimensions 330mm x 218mm
I/O Options 32-bit system memory card
NPU Options 80387
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J1 | Alternate reset | W5 |
| | | switch | |
|------------------+----------+-------------------+----------|
| Power LED & | J20 | Turbo switch | W6 |
| keylock | | | |
|------------------+----------+-------------------+----------|
| Speaker | J21 | Turbo LED | W7 |
|------------------+----------+-------------------+----------|
| Reset switch | W4 | 32-bit system | S1 |
| | | memory card | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| | BIOS type select 27128 | W1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS type select 27256 | W1 | pins 3 & 4 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | On-board BIOS enabled | W2 | closed |
|---+---------------------------+---------------+------------|
| | On-board BIOS disabled | W2 | open |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/switch 1 | closed |
| | not alter | | |
|---+---------------------------+---------------+------------|
| | NPU present | SW1/switch 2 | closed |
|---+---------------------------+---------------+------------|
| | NPU absent | SW1/switch 2 | open |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/switch 3 | open |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/switch 4 | open |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | System board normal | SW1/switch 5 | open |
| | operation | | |
|---+---------------------------+---------------+------------|
| | System execute Power On | SW1/switch 5 | closed |
| | Self Test | | |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | SW1/switch 6 | closed |
|---+---------------------------+---------------+------------|
| | Monitor type select | SW1/switch 6 | open |
| | monochrome | | |
+------------------------------------------------------------+

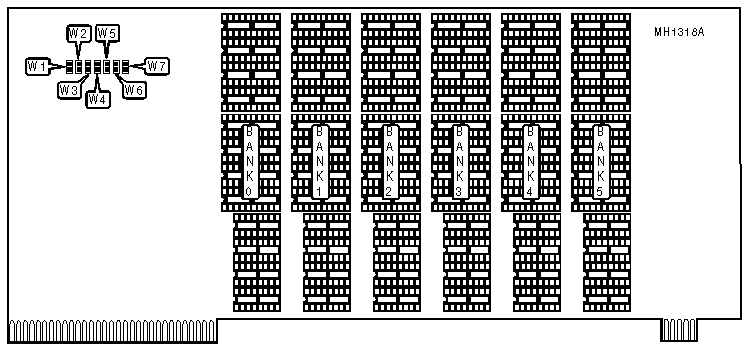

6MB SYSTEM MEMORY BOARD
IMG IMG 2
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Parity check enabled | W1 | closed |
|---+------------------------------------+--------+----------|
| | Parity check disabled | W1 | open |
|---+------------------------------------+--------+----------|
| » | Memory bank 1 enabled | W2 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 1 disabled | W2 | open |
|---+------------------------------------+--------+----------|
| » | Memory bank 2 enabled | W3 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 2 disabled | W3 | open |
|---+------------------------------------+--------+----------|
| » | Memory bank 3 enabled | W4 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 3 disabled | W4 | open |
|---+------------------------------------+--------+----------|
| » | Memory bank 4 enabled | W5 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 4 disabled | W5 | open |
|---+------------------------------------+--------+----------|
| » | Memory bank 5 enabled | W6 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 5 disabled | W6 | open |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | W7 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 | Bank 4 | Bank |
| | | | | | | 5 |
|-------+--------+--------+--------+--------+--------+-------|
| 1MB | (8) | NONE | NONE | NONE | NONE | NONE |
| | 256K x | | | | | |
| | 4 | | | | | |
| | | | | | | |
| | (4) | | | | | |
| | 256K x | | | | | |
| | 1 | | | | | |
|-------+--------+--------+--------+--------+--------+-------|
| 2MB | (8) | (8) | NONE | NONE | NONE | NONE |
| | 256K x | 256K x | | | | |
| | 4 | 4 | | | | |
| | | | | | | |
| | (4) | (4) | | | | |
| | 256K x | 256K x | | | | |
| | 1 | 1 | | | | |
|-------+--------+--------+--------+--------+--------+-------|
| 3MB | (8) | (8) | (8) | NONE | NONE | NONE |
| | 256K x | 256K x | 256K x | | | |
| | 4 | 4 | 4 | | | |
| | | | | | | |
| | (4) | (4) | (4) | | | |
| | 256K x | 256K x | 256K x | | | |
| | 1 | 1 | 1 | | | |
|-------+--------+--------+--------+--------+--------+-------|
| 4MB | (8) | (8) | (8) | (8) | NONE | NONE |
| | 256K x | 256K x | 256K x | 256K x | | |
| | 4 | 4 | 4 | 4 | | |
| | | | | | | |
| | (4) | (4) | (4) | (4) | | |
| | 256K x | 256K x | 256K x | 256K x | | |
| | 1 | 1 | 1 | 1 | | |
|-------+--------+--------+--------+--------+--------+-------|
| 5MB | (8) | (8) | (8) | (8) | (8) | NONE |
| | 256K x | 256K x | 256K x | 256K x | 256K x | |
| | 4 | 4 | 4 | 4 | 4 | |
| | | | | | | |
| | (4) | (4) | (4) | (4) | (4) | |
| | 256K x | 256K x | 256K x | 256K x | 256K x | |
| | 1 | 1 | 1 | 1 | 1 | |
|-------+--------+--------+--------+--------+--------+-------|
| 6MB | (8) | (8) | (8) | (8) | (8) | (8) |
| | 256K x | 256K x | 256K x | 256K x | 256K x | 256K |
| | 4 | 4 | 4 | 4 | 4 | x 4 |
| | | | | | | |
| | (4) | (4) | (4) | (4) | (4) | (4) |
| | 256K x | 256K x | 256K x | 256K x | 256K x | 256K |
| | 1 | 1 | 1 | 1 | 1 | x 1 |
|------------------------------------------------------------|
| Note:The (4) 256 x 1 chips are for parity, each bank must |
| be completely full in order to function. |
+------------------------------------------------------------+
IMG IMG 3
+------------------------------------------------------------+

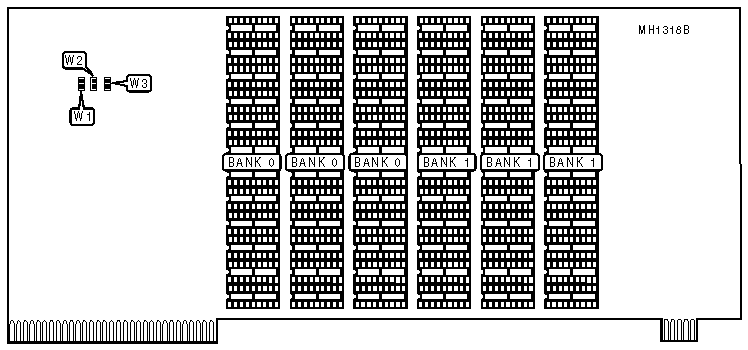

| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Memory bank 1 enabled | W1 | closed |
|---+------------------------------------+--------+----------|
| | Memory bank 1 disabled | W1 | open |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | W2 | N/A |
|---+------------------------------------+--------+----------|
| | System & video BIOS select | W3 | closed |
| | relocatable | | |
| | | | |
| | (extended memory size = 14.5MB) | | |
|---+------------------------------------+--------+----------|
| | System & video BIOS select | W3 | open |
| | NON-relocatable | | |
| | | | |
| | (extended memory size = 15MB) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (32) 256K x 4 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (32) 256K x 4 | (32) 256K x 4 |
+------------------------------------------------------------+
