# EVEREX SYSTEMS, INC.
AGI METRO 386DX/33 EV-18205
Processor 80386DX
Processor Speed 33MHz
Chip Set C & T/Suntac
Max. onboard DRAM 32MB
Cache 32/128KB
BIOS AMI
Dimensions 220mm x 220mm
I/O Options None
NPU Options 80387DX

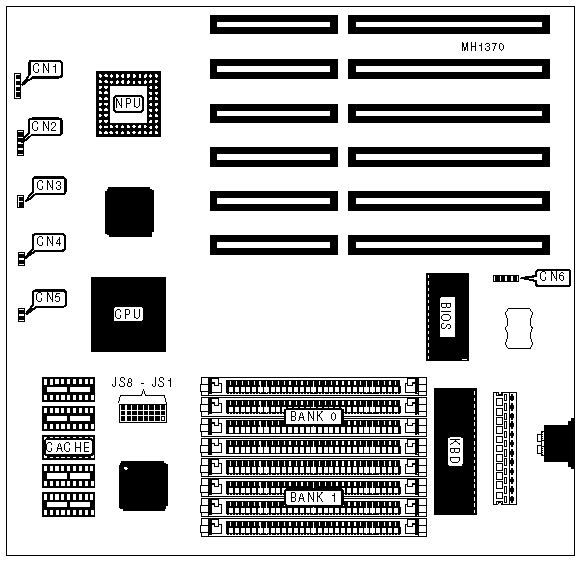

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Keylock | CN1 | Turbo switch | CN4 |
|----------------+----------+---------------------+----------|
| Speaker | CN2 | Turbo LED | CN5 |
|----------------+----------+---------------------+----------|
| Reset | CN3 | External battery | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Cache | TAG |
|------------------+--------------------+--------------------|
| 32KB | (4) 8K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | (1) 32K x 8 |
|------------------------------------------------------------|
| Note:Exact location of Tag RAM is unknown. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 - JS8 |
|----------------------------+-------------------------------|
| 32KB | pins 1 & 2 |
|----------------------------+-------------------------------|
| 128KB | pins 2 & 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
