# EVEREX SYSTEMS, INC.
3000 K/L
Processor 80386DX
Processor Speed 25/33MHz
Chip Set C & T
Max. onboard DRAM 8MB
Cache 64KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card
NPU Options 80386DX

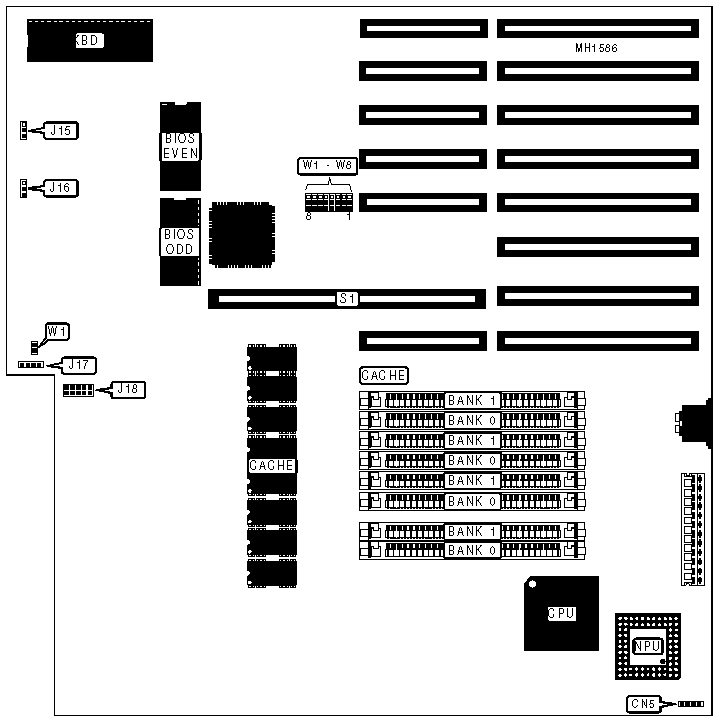

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | CN5 | Front Panel | J18 |
| | | connector | |
|------------------+----------+-------------------+----------|
| Speaker | J17 | 32-bit external | S1 |
| | | memory card | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------------+---------+------------|
| » | Factory configured - do not | J15 | pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+---------+------------|
| » | Factory configured - do not | J16 | pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+---------+------------|
| » | Factory configured - do not | W1 - W8 | pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+---------+------------|
| » | Factory configured - do not | W1 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
+------------------------------------------------------------+
