# ELITEGROUP COMPUTER SYSTEMS, INC.
UM 386
Processor 80386DX
Processor Speed 33/40MHz
Chip Set UMC
Max. Onboard DRAM 32MB
Cache 64/128KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387DX/3167

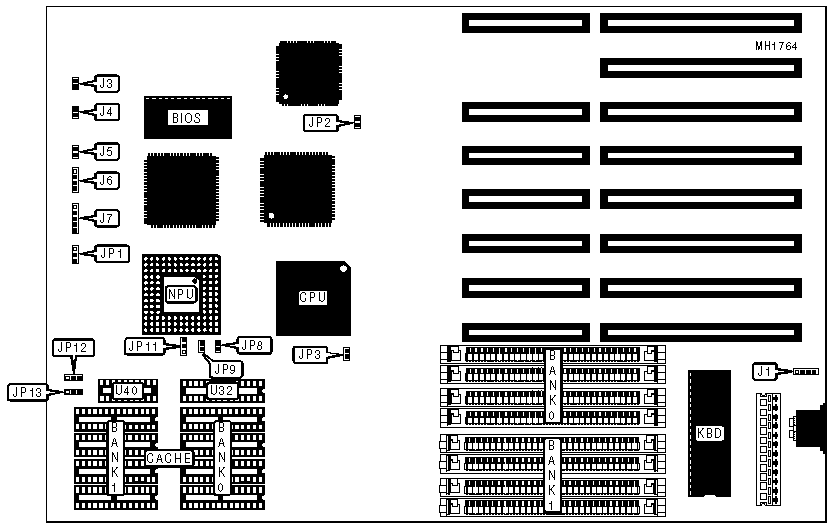

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J1 | Reset switch | J5 |
|------------------+----------+-------------------+----------|
| Turbo LED | J3 | Speaker | J6 |
|------------------+----------+-------------------+----------|
| Turbo switch | J4 | Power LED & | J7 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select color | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG/U32 | Dirty |
| | | | | Bit/U40 |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 | (1) 16K x |
| | | | | 4 |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 | (1) 16K x |
| | | | | 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP8 | JP9 | JP11 | JP12 | JP13 |
|-------+--------+--------+-----------+-----------+----------|
| 64KB | Open | Open | pins 1 & | Open | pins 1 & |
| | | | 2 closed | | 2 closed |
|-------+--------+--------+-----------+-----------+----------|
| 128KB | Closed | Closed | pins 2 & | pins 1 & | pins 2 & |
| | | | 3 closed | 2 closed | 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NPU CONFIGURATION |
|------------------------------------------------------------|
| NPU | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| Enabled | Closed | Closed |
|--------------------+-------------------+-------------------|
| Disabled | Open | Open |
+------------------------------------------------------------+
