# GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586IS
Processor Pentium
Processor Speed 60/66MHz
Chip Set Intel
Max. Onboard DRAM 192MB
Cache 256/512KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI bus slots (4)
NPU Options None

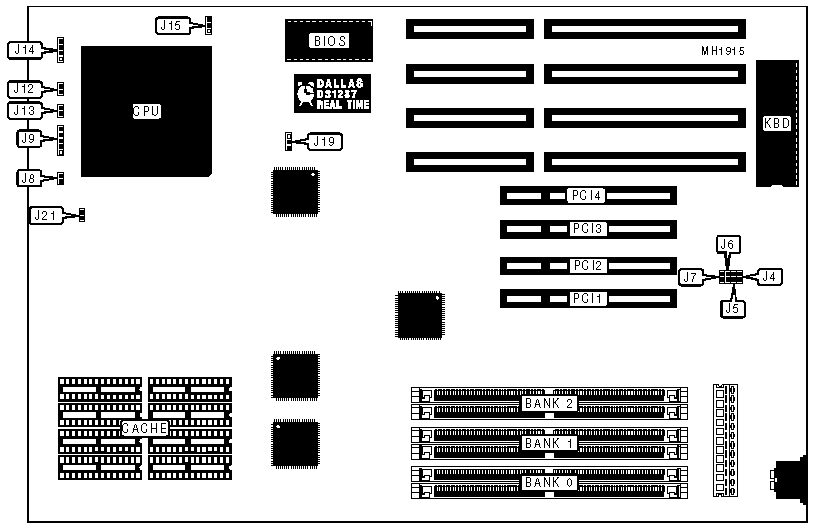

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Reset switch | J8 | CPU cooling fan | J21 |
|-------------------+----------+------------------+----------|
| Power LED & | J9 | 32-bit PCI bus | PCI1 |
| keylock | | slot | |
|-------------------+----------+------------------+----------|
| Turbo switch | J12 | 32-bit PCI bus | PCI2 |
| | | slot | |
|-------------------+----------+------------------+----------|
| Turbo LED | J13 | 32-bit PCI bus | PCI3 |
| | | slot | |
|-------------------+----------+------------------+----------|
| Speaker | J14 | 32-bit PCI bus | PCI4 |
| | | slot | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 4MB | (2) 512K x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 6MB | (2) 256K x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 12MB | (2) 512K x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (2) 1M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 2M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Cache | J15 |
|---------+-----------------------------+--------------------|
| 256KB | (8) 32K x 8 | pins 1 & 2 closed |
|---------+-----------------------------+--------------------|
| 512KB | (8) 64K x 8 or (8) 128K x 8 | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Type | J19 |
|----------------------------+-------------------------------|
| 60MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 66MHz | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI IRQ SELECT |
|------------------------------------------------------------|
| IRQ | J4 | J5 | J6 | J7 |
|---------+------------+------------+------------+-----------|
| 9 | Open | Open | Open | Closed |
|---------+------------+------------+------------+-----------|
| 10 | Open | Open | Closed | Open |
|---------+------------+------------+------------+-----------|
| 11 | Open | Closed | Open | Open |
|---------+------------+------------+------------+-----------|
| 14 | Closed | Open | Open | Open |
+------------------------------------------------------------+
