# FIRST INTERNATIONAL COMPUTER, INC.
486-GVT-2
Processor CX486S/80486SX/CX487S/CX486DX/80486DX/80486DX2/Pentium
Overdrive
Processor 25/33/50(internal)/50/66(internal)/66MHz
Speed
Chip Set VIA
Max. 96MB
Onboard
DRAM
Cache 64/128/256KB
BIOS AMI
Dimensions 259mm x 218mm
I/O 32-bit VESA local bus slots (2), PS/2 mouse port
Options
IMG IMG 1
+------------------------------------------------------------+

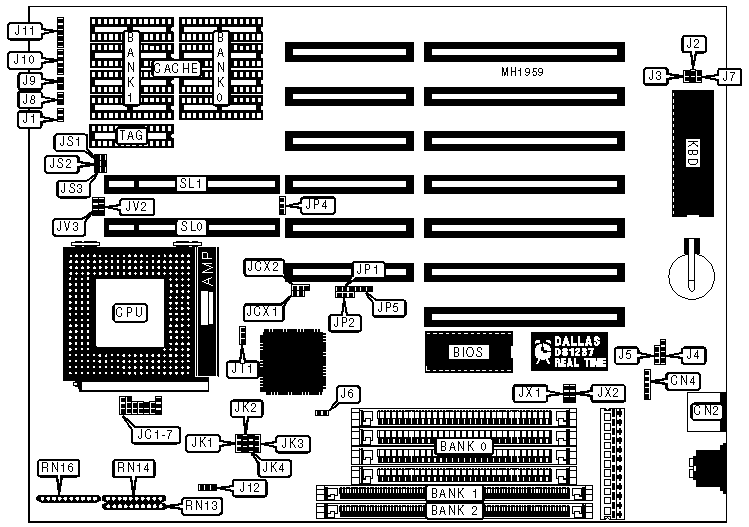

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Turbo switch | J1 | Speaker | J10 |
|------------------+----------+-------------------+----------|
| Green power | J3 | Power LED & | J11 |
| supply | | keylock | |
|------------------+----------+-------------------+----------|
| External battery | J4 | PS/2 mouse port | CN2 |
|------------------+----------+-------------------+----------|
| Turbo LED | J8 | Mouse connector | CN4 |
|------------------+----------+-------------------+----------|
| Reset switch | J9 | 32-bit VESA Local | SL0 & |
| | | bus slots | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------------+---------+------------|
| » | Monitor type select monochrome | J2 | Open |
|---+---------------------------------+---------+------------|
| | Monitor type select color | J2 | Closed |
|---+---------------------------------+---------+------------|
| » | CMOS memory normal operation | J5 | pins 2 & 3 |
| | (Internal Battery) | | closed |
|---+---------------------------------+---------+------------|
| | CMOS memory normal operation | J5 | pins 1 & 2 |
| | (External Battery) | | closed |
|---+---------------------------------+---------+------------|
| » | Transfer rate < 5.7MB/s | J6 | Open |
|---+---------------------------------+---------+------------|
| | Adaptec ISA master SCSI card | J6 | Closed |
| | (transfer rate > 5.7MB/s) | | |
|---+---------------------------------+---------+------------|
| » | CMOS memory normal operation | J7 | Closed |
|---+---------------------------------+---------+------------|
| | CMOS memory clear | J7 | Open |
|---+---------------------------------+---------+------------|
| » | Cyrix CPU 1X clock mode | J12 | pins 2 & 3 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | Cyrix CPU 2X clock mode | J12 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | 80486SX/P23S/P4S/CX486S | JC6 | Closed |
| | disabled | | |
|---+---------------------------------+---------+------------|
| | 80486SX/P23S/P4S/CX486S enabled | JC6 | Open |
|---+---------------------------------+---------+------------|
| » | Factory configured - do not | JP1 | pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+---------+------------|
| » | IRQ 15 (regular CPU) | JP2,JX2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | SMI (Cyrix/Intel S series) | JP2,JX2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------------+---------+------------|
| » | Local bus IDE interface | JP4 | pins 1 & 2 |
| | disabled | | closed |
|---+---------------------------------+---------+------------|
| | Local bus IDE interface enabled | JP4 | pins 2 & 3 |
| | (SL0 only) | | closed |
|---+---------------------------------+---------+------------|
| » | Factory configured - do not | JP5 | pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+---------+------------|
| | P24T write back | JT1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | P24T write through | JT1 | pins 2 & 3 |
| | | | closed |
|---+---------------------------------+---------+------------|
| » | Intel S-series CPU | JCX1 | Open |
|---+---------------------------------+---------+------------|
| | Cyrix CX486S/DX | JCX1 | Closed |
|---+---------------------------------+---------+------------|
| » | Intel S-series CPU | JCX2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | Cyrix CX486S/DX | JCX2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------------+---------+------------|
| » | CPU clock 1X | JX1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+---------+------------|
| | CPU clock 2X | JX1 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 1MB | (4) 256K x 9 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 1MB | NONE | (1) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 1MB | NONE | NONE | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 2MB | (4) 256K x 9 | (1) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 2MB | NONE | (1) 256K x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 2MB | (4) 256K x 9 | NONE | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 3MB | (4) 256K x 9 | (1) 256K x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 4MB | (4) 1M x 9 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 4MB | NONE | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 4MB | NONE | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 5MB | (4) 256K x 9 | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 5MB | (4) 256K x 9 | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 5MB | (4) 1M x 9 | (1) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 5MB | (4) 1M x 9 | NONE | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 5MB | NONE | (1) 256K x 36 | (1) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CONTINUED) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 5MB | NONE | (1) 1M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 6MB | (4) 256K x 9 | (1) 1M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 6MB | (4) 256K x 9 | (1) 256K x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 6MB | (4) 1M x 9 | (1) 256K x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 8MB | (4) 1M x 9 | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 8MB | (4) 1M x 9 | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 8MB | NONE | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 9MB | (4) 256K x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 9MB | (4) 1M x 9 | (1) 256K x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 9MB | (4) 1M x 9 | (1) 1M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 12MB | (4) 1M x 9 | (1) 1M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (4) 4M x 9 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 16MB | NONE | (1) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | NONE | NONE | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 17MB | (4) 256K x 9 | (1) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 17MB | (4) 256K x 9 | NONE | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 17MB | NONE | (1) 256K x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 17MB | NONE | (1) 4M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 17MB | (4) 4M x 9 | (1) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 17MB | (4) 4M x 9 | NONE | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (4) 256K x 9 | (1) 256K x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (4) 256K x 9 | (1) 4M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (4) 4M x 9 | (1) 256K x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (4) 1M x 9 | (1) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 20MB | (4) 1M x 9 | NONE | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (4) 4M x 9 | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 20MB | (4) 4M x 9 | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 20MB | NONE | (1) 1M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 20MB | NONE | (1) 4M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 256K x 9 | (1) 1M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 256K x 9 | (1) 4M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 1M x 9 | (1) 256K x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 1M x 9 | (1) 4M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 4M x 9 | (1) 256K x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 21MB | (4) 4M x 9 | (1) 1M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (4) 1M x 9 | (1) 1M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (4) 1M x 9 | (1) 4M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (4) 4M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (4) 4M x 9 | (1) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (4) 4M x 9 | NONE | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | NONE | (1) 4M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 33MB | (4) 256K x 9 | (1) 4M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 33MB | (4) 4M x 9 | (1) 256K x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 33MB | (4) 4M x 9 | (1) 4M x 36 | (1) 256K x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 36MB | (4) 4M x 9 | (1) 4M x 36 | (1) 256K x 36 |
|------------+---------------+---------------+---------------|
| 36MB | (4) 4M x 9 | (1) 256K x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (4) 4M x 9 | (1) 4M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (4) 16M x 9 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 65MB | (4) 16M x 9 | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 65MB | (4) 16M x 9 | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 66MB | (4) 16M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 68MB | (4) 16M x 9 | (1) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 68MB | (4) 16M x 9 | NONE | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 69MB | (4) 16M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 69MB | (4) 16M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (4) 16M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (4) 16M x 9 | (1) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 80MB | (4) 16M x 9 | NONE | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 81MB | (4) 16M x 9 | (1) 1M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 81MB | (4) 16M x 9 | (1) 1M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 81MB | (4) 16M x 9 | (1) 4M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 84MB | (4) 16M x 9 | (1) 1M x 36 | (1) 4M x 36 |
|------------+---------------+---------------+---------------|
| 84MB | (4) 16M x 9 | (1) 4M x 36 | (1) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (4) 16M x 9 | (1) 4M x 36 | (1) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS2 | JS3 |
|-------+-----------------+-----------------+----------------|
| 64KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 128KB | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 256KB | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| CPU type | RN13 | RN14 | RN16 |
|-----------------+--------------+-------------+-------------|
| CX486S & | Not | Not | Installed |
| 487S/DX | installed | installed | |
|-----------------+--------------+-------------+-------------|
| SX/DX/DX2 | Not | Not | Not |
| | installed | installed | installed |
|-----------------+--------------+-------------+-------------|
| P23S/P4S/P24S | Installed | Not | Not |
| | | installed | installed |
|-----------------+--------------+-------------+-------------|
| P23S/P4S/CX486S | Not | Installed | Not |
| | installed | | installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| CPU type | JC1 | JC2 | JC3 | JC4 | JC5 | JC7 |
|-------------+------+------+--------+--------+--------+-----|
| CX486S | 2 & | 2 & | Closed | Open | Open | 1 & |
| | 3 | 3 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| CX486S/487S | 1 & | 1 & | Closed | Open | Open | 1 & |
| | 2 | 2 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| 486SX/P23S | 2 & | 2 & | Open | Open | Closed | 1 & |
| | 3 | 3 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| CX486DX | 1 & | 1 & | Closed | Open | Open | 1 & |
| | 2 | 2 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| DX/DX2 | 1 & | 1 & | Closed | Open | Closed | 1 & |
| | 2 | 2 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| P24S/P4S | 1 & | 1 & | Closed | Open | Closed | 1 & |
| | 2 | 2 | | | | 2 |
|-------------+------+------+--------+--------+--------+-----|
| P24T | 1 & | 1 & | Open | Closed | Open | 2 & |
| | 2 | 2 | | | | 3 |
|------------------------------------------------------------|
| Note: pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK SELECT |
|------------------------------------------------------------|
| Speed | JK1 | JK2 | JK3 | JK4 |
|--------+------------+------------+------------+------------|
| 25MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 33MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 40MHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 50MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 66MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 80MHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 100MHz | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE/BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | Wait states | JV2 | JV3 |
|-----------+---------------+-------------------+------------|
| < 33MHz | 0 wait states | pins 1 & 2 closed | pins 1 & 2 |
| | | | closed |
|-----------+---------------+-------------------+------------|
| > 33MHz | 1 wait state | pins 2 & 3 closed | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
