       # FORCOM TECHNOLOGY CORPORATION

          80486 DX/SX CACHE

          Processor    80486SX/80487SX/80486DX/80486DX2
          Processor    20/25/33/50i/66iMHz
          Speed
          Chip Set     ALI
          Max. Onboard 32MB
          DRAM
          Cache        128/256KB
          BIOS         Award
          Dimensions   330mm x 218mm
          I/O Options  Floppy drive interface, IDE interface, parallel
                       port, PS/2 mouse port,

                       serial ports (2), VGA port
          NPU Options  None

   IMG IMG 1


          +------------------------------------------------------------+

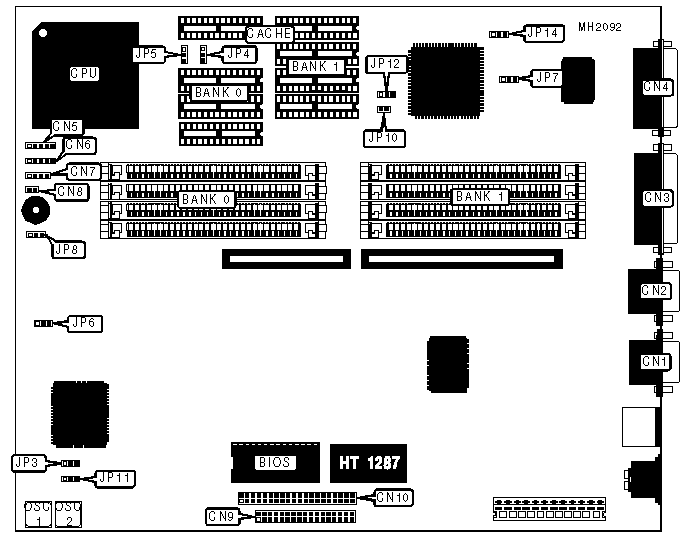

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose        | Location | Purpose             | Location |
          |----------------+----------+---------------------+----------|
          | Serial port 1  |   CN1    | Speaker             |   CN7    |
          |----------------+----------+---------------------+----------|
          | Serial port 2  |   CN2    | Reset switch        |   CN8    |
          |----------------+----------+---------------------+----------|
          | Parallel port  |   CN3    | Floppy drive        |   CN9    |
          |                |          | interface           |          |
          |----------------+----------+---------------------+----------|
          | VGA port       |   CN4    | IDE interface       |   CN10   |
          |----------------+----------+---------------------+----------|
          | Power LED &    |   CN5    | IDE interface LED   |   JP8    |
          | keylock        |          |                     |          |
          |----------------+----------+---------------------+----------|
          | Turbo switch & |   CN6    |                     |          |
          | LED            |          |                     |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Jumper |   Position   |
          |------------------------------------+--------+--------------|
          | » | Monitor in interlace mode      |  JP7   |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Monitor in non-interlace mode  |  JP7   |     Open     |
          |---+--------------------------------+--------+--------------|
          | » | Monitor type select monochrome |  JP10  |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Monitor type select color      |  JP10  |     Open     |
          |---+--------------------------------+--------+--------------|
          | » | CPU clock select 33MHz         |  JP11  |  pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | CPU clock select 25MHz         |  JP11  |  pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | VGA display enabled            |  JP12  |  pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | VGA display disabled           |  JP12  |  pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | VESA monitor enabled           |  JP14  |  pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | VGA monitor enabled            |  JP14  |  pins 2 & 3  |
          |   |                                |        |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 3       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |    (4) 256K x 9    |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     NONE      |  (1) 8K x 8   |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (1) 32K x 8  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  BUS CLOCK CONFIGURATION                   |
          |------------------------------------------------------------|
          |    OSC Clock     |        JP3         |        JP6         |
          |------------------+--------------------+--------------------|
          |      32MHz       | pins 2 & 3 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      40MHz       | pins 2 & 3 closed  | pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |      50MHz       | pins 1 & 2 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      66MHz       | pins 1 & 2 closed  | pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |     CPU Type     |        JP4         |        JP5         |
          |------------------+--------------------+--------------------|
          |     80486SX      |        Open        | pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |     80487SX      | pins 1 & 2 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |     80486DX      | pins 2 & 3 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |     80486DX2     | pins 2 & 3 closed  | pins 2 & 3 closed  |
          +------------------------------------------------------------+
