# HEWLETT-PACKARD COMPANY
HP NETSERVER LE
Processor 80487SX/80486DX/ODP486SX/80486DX2/Pentium
Overdrive
Processor 33/66(internal)MHz
Speed
Chip Set Hewlett Packard
Max. Onboard 128MB
DRAM
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, SCSI interface, SCSI port, serial ports
(2), PS/2 mouse port, VGA port
NPU Options None

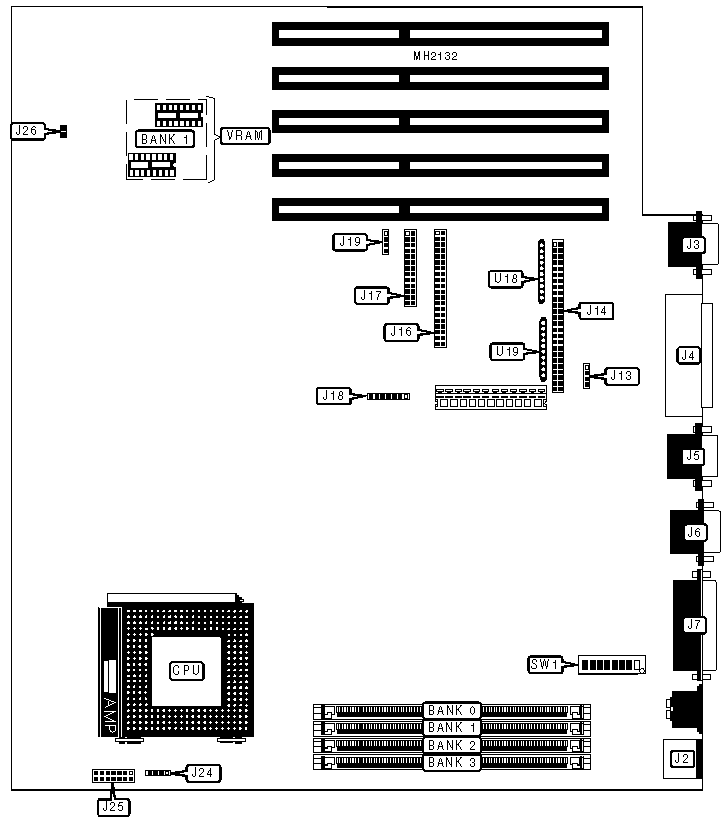

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | J2 | Floppy drive | J16 |
| | | interface | |
|------------------+----------+-------------------+----------|
| VGA port | J3 | IDE interface | J17 |
|------------------+----------+-------------------+----------|
| SCSI connector | J4 | IDE interface LED | J19 |
| (external) | | | |
|------------------+----------+-------------------+----------|
| Serial port 1 | J5 | Chassis fan power | J24 |
|------------------+----------+-------------------+----------|
| Serial port 2 | J6 | Control panel | J25 |
| | | connector | |
|------------------+----------+-------------------+----------|
| Parallel port | J7 | Speaker | J26 |
|------------------+----------+-------------------+----------|
| External battery | J13 | SCSI terminators | U18 & |
| | | | U19 |
|------------------+----------+-------------------+----------|
| SCSI connector | J14 | | |
| (internal) | | | |
|------------------------------------------------------------|
| Note: J24 may not be present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | Factory configured - do | J18 | pins 1 & 2 |
| | not alter | | closed |
|---+---------------------------+---------------+------------|
| » | Flash BIOS write protect | SW1/1 | Off |
| | enabled | | |
|---+---------------------------+---------------+------------|
| | Flash BIOS write protect | SW1/1 | On |
| | disabled | | |
|---+---------------------------+---------------+------------|
| » | On board video disabled | SW1/2 | On |
|---+---------------------------+---------------+------------|
| | On board video enabled | SW1/2 | Off |
|---+---------------------------+---------------+------------|
| » | Password enabled | SW1/3 | Off |
|---+---------------------------+---------------+------------|
| | Password disabled | SW1/3 | On |
|---+---------------------------+---------------+------------|
| » | CMOS memory normal | SW1/4 | Off |
| | operation | | |
|---+---------------------------+---------------+------------|
| | CMOS memory clear | SW1/4 | On |
|---+---------------------------+---------------+------------|
| » | BIOS write protect | SW1/5 | On |
| | enabled | | |
|---+---------------------------+---------------+------------|
| | BIOS write protect | SW1/5 | Off |
| | disabled | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/8 | On |
| | not alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 2M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 4M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 2M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 4M x 36 | (1) 2M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 2M x 36 | (1) 2M x | NONE |
| | | | 36 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 8M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 36MB | (1) 8M x 36 | (1) 1M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 4M x 36 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 8M x 36 | (1) 1M x | (1) 1M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 8M x 36 | (1) 2M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 44MB | (1) 8M x 36 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 8M x 36 | (1) 2M x | (1) 2M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 8M x 36 | (1) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 56MB | (1) 8M x 36 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 4M x | (1) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 8M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 8M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | SW1/6 | SW1/7 |
|--------------------+-------------------+-------------------|
| 80487SX | Off | On |
|--------------------+-------------------+-------------------|
| 80486DX | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 256KB | (2) 256 x 4 | NONE |
|------------------+--------------------+--------------------|
| 512KB | (2) 256 x 4 | (2) 256 x 4 |
|------------------------------------------------------------|
| Note: The location of Bank 0 is unidentified. |
+------------------------------------------------------------+
