# FOREX COMPUTER CORPORATION
FOREX 486 REV. VL2
Processor 80486SX/80487SX/80486DX/80486DX2/Pentium
Overdrive
Processor 20/25/33/40/50(internal)/50/66(internal)MHz
Speed
Chip Set Forex
Max. Onboard 32MB
DRAM
Cache 64/128/256KB
BIOS AMI
Dimensions 254mm x 220mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

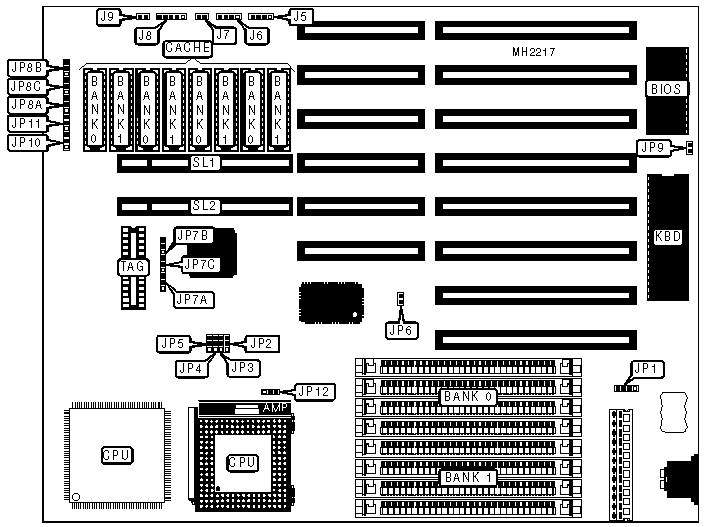

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Turbo LED | J5 | Reset switch | J9 |
|---------------+----------+----------------------+----------|
| Speaker | J6 | External battery | JP1 |
|---------------+----------+----------------------+----------|
| Turbo switch | J7 | 32-bit local bus | SL1 & |
| | | slots | SL2 |
|---------------+----------+----------------------+----------|
| Power LED & | J8 | | |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | JP6 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP6 | Closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP9 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | CPU type select 80486 | JP12 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU type select Pentium | JP12 | pins 2 & 3 |
| | Overdrive | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|----------+---------------+---------------+-----------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|----------+---------------+---------------+-----------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|----------+---------------+---------------+-----------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 16K/32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP8A | JP8B | JP8C |
|-------+-----------------+-----------------+----------------|
| 64KB | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 128KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 256KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP2 | JP3 | JP4 | JP5 |
|-------------+-----------+-----------+-----------+----------|
| 80486SX | pins 2 & | Open | Open | pins 2 & |
| | 3 closed | | | 3 closed |
|-------------+-----------+-----------+-----------+----------|
| 80486SX/DX | pins 2 & | pins 2 & | pins 2 & | pins 2 & |
| PQFP | 3 closed | 3 closed | 3 closed | 3 closed |
|-------------+-----------+-----------+-----------+----------|
| 80487SX | pins 2 & | pins 1 & | pins 1 & | pins 2 & |
| | 3 closed | 2 closed | 2 closed | 3 closed |
|-------------+-----------+-----------+-----------+----------|
| 80486DX/DX2 | pins 1 & | pins 1 & | pins 1 & | pins 1 & |
| | 2 closed | 2 closed | 2 closed | 2 closed |
|-------------+-----------+-----------+-----------+----------|
| Pentium | pins 2 & | pins 1 & | pins 1 & | pins 2 & |
| Overdrive | 3 closed | 2 closed | 2 closed | 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP7A | JP7B | JP7C |
|--------+-----------------+----------------+----------------|
| 20MHz | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 25MHz | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 33MHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 40MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 50iMHz | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 50MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 66iMHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Wait states | JP10 |
|----------------------------+-------------------------------|
| 0 wait states | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 1 wait state | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | JP11 |
|----------------------------+-------------------------------|
| <= 33MHz | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| > 33MHz | pins 2 & 3 closed |
+------------------------------------------------------------+
