# FUJIKAMA USA, INC.
PEAK/DM-386
Processor 80386DX
Processor Speed 25/33/40MHz
Chip Set Unidentified
Max. Onboard DRAM 32MB
Cache 32/64/128KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387DX/3167

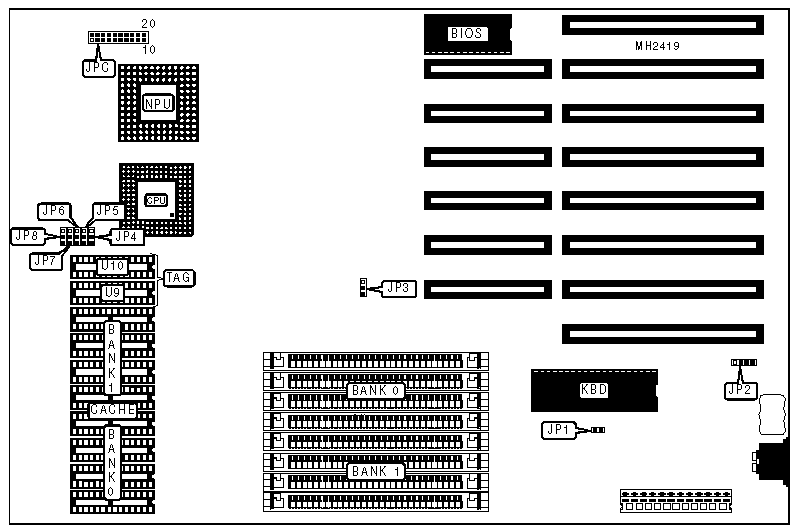

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+-----------+---------------+-----------|
| Power LED & | JPC (pins | Turbo switch | JPC (pins |
| keylock | 1 - 5) | | 15 - 7) |
|--------------------+-----------+---------------+-----------|
| Speaker | JPC (pins | Reset switch | JPC (pins |
| | 6 - 10) | | 19 - 20) |
|--------------------+-----------+---------------+-----------|
| Turbo LED | JPC (pins | External | JP2 |
| | 12 - 13) | battery | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Monitor type select color | JP1 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP1 | Open |
|---+----------------------------------+--------+------------|
| » | Memory type select same type in | JP3 | pins 1 & 2 |
| | Bank 0 & Bank 1 | | closed |
|---+----------------------------------+--------+------------|
| | Memory type select different | JP3 | pins 2 & 3 |
| | type in Bank 0 & Bank 1 | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG (U9) | TAG (U10) |
|-------+-------------+------------+------------+------------|
| 32KB | (4) 8K x 8 | NONE | NONE | (1) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 | (1) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | NONE | (1) 32K x |
| | | | | 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP4 | JP5 | JP6 | JP7 | JP8 |
|----------+----------+----------+---------+--------+--------|
| 32KB | 2 & 3 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 64KB | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 128KB | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
