       # FUJIKAMA USA, INC.

          386ASX-16/20/25MHZ

          Processor         80386SX
          Processor Speed   16/20/25MHz
          Chip Set          OPTI
          Max. Onboard DRAM 16MB
          Cache             None
          BIOS              AMI
          Dimensions        220mm x 220mm
          I/O Options       None
          NPU Options       80387SX

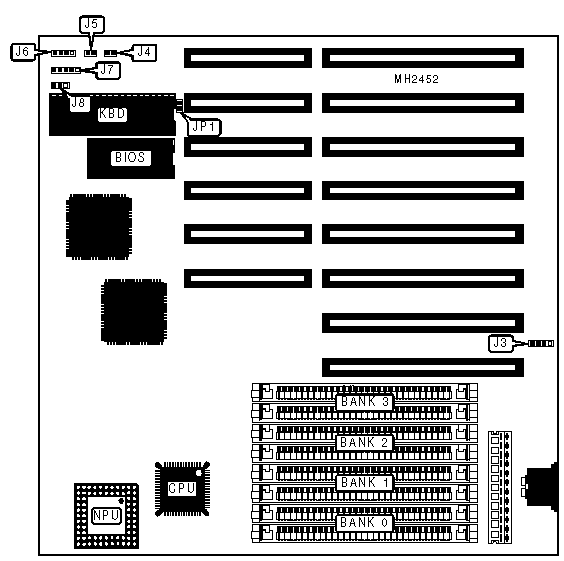

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |    J3    | Speaker           |    J6    |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |    J4    | Power LED &       |    J7    |
          |                  |          | keylock           |          |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |    J5    | Reset switch      |    J8    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper  | Position  |
          |--------------------------------------+---------+-----------|
          | » | Monitor type select monochrome   |   JP1   |   Open    |
          |---+----------------------------------+---------+-----------|
          |   | Monitor type select color        |   JP1   |  Closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |   Bank 2   |   Bank 3   |
          |------+-------------+-------------+------------+------------|
          | 1MB  | (2) 256K x  | (2) 256K x  |    NONE    |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 2MB  | (2) 256K x  | (2) 256K x  | (2) 256K x | (2) 256K x |
          |      |      9      |      9      |     9      |     9      |
          |------+-------------+-------------+------------+------------|
          | 2MB  | (2) 1M x 9  |    NONE     |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 3MB  | (2) 256K x  | (2) 256K x  | (2) 1M x 9 |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 4MB  | (2) 1M x 9  | (2) 1M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 5MB  | (2) 256K x  | (2) 256K x  | (2) 1M x 9 | (2) 1M x 9 |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 6MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 8MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 |
          |------+-------------+-------------+------------+------------|
          | 9MB  | (2) 256K x  | (2) 256K x  | (2) 4M x 9 |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 10MB | (2) 1M x 9  | (2) 4M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 12MB | (2) 1M x 9  | (2) 1M x 9  | (2) 4M x 9 |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 16MB | (2) 4M x 9  | (2) 4M x 9  |    NONE    |    NONE    |
          +------------------------------------------------------------+
