# FIRST INTERNATIONAL COMPUTER, INC.
486-VC-HD
Processor 80486SX/80487SX/80486DX/80486DX2
Processor Speed 25/33/40/50(internal)/50/66(internal)MHz
Chip Set VIA
Max. Onboard DRAM 128MB
Cache 64/128/256KB
BIOS Award
Dimensions 254mm x 220mm
I/O Options None
NPU Options None

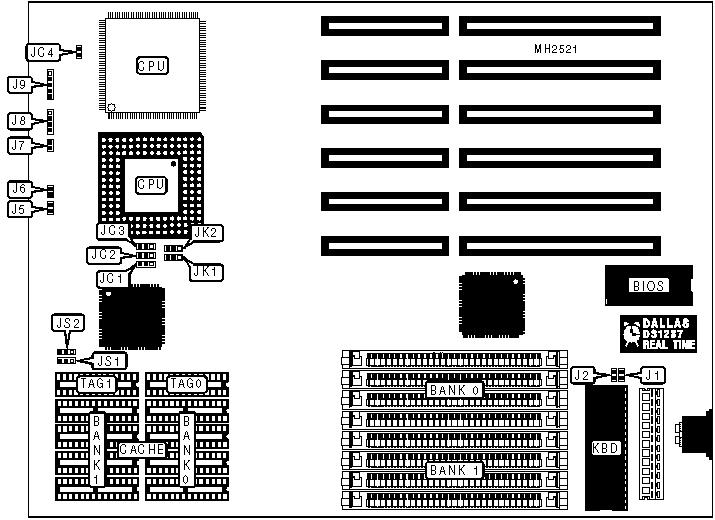

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Turbo LED | J5 | Speaker | J8 |
|----------------+----------+---------------------+----------|
| Turbo switch | J6 | Power LED & keylock | J9 |
|----------------+----------+---------------------+----------|
| Reset switch | J7 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | CMOS memory normal operation | J1 | Open |
|---+------------------------------------+--------+----------|
| | CMOS memory clear | J1 | Closed |
|---+------------------------------------+--------+----------|
| » | Monitor type select | J2 | Open |
| | monochrome/EGA/VGA | | |
|---+------------------------------------+--------+----------|
| | Monitor type select color | J2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 256K x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 64MB | (4) 16M x 9 | NONE |
|------------------+--------------------+--------------------|
| 65MB | (4) 256K x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 65MB | (4) 16M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 68MB | (4) 1M x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 68MB | (4) 16M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 4M x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 16M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
.
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG 0 | TAG 1 |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 | (1) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 | (1) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 256KB | (4) 32K x 8 | (4) 32K x | (1) 32K x | (1) 32K x |
| | | 8 | 8 | 8 |
|------------------------------------------------------------|
| Note: TAG 1 is optional. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS2 |
|------------------+--------------------+--------------------|
| 64KB | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 128KB | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JC1 | JC2 | JC3 |
|----------+----------------+----------------+---------------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | Open |
| | closed | closed | |
|----------+----------------+----------------+---------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX2 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JC4 |
|-------------------------------+----------------------------|
| PQFP installed | Open |
|-------------------------------+----------------------------|
| PGA installed | Open |
|-------------------------------+----------------------------|
| PQFP & PGA installed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JK1 | JK2 |
|------------------+--------------------+--------------------|
| 1x | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 2x | pins 1 & 2 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
