# FIRST INTERNATIONAL COMPUTER, INC.
PT-2000
Processor Pentium
Processor 75/90/100/120MHz
Speed
Chip Set Intel
Max. Onboard 128MB
DRAM
Cache 256/512KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
32-bit PCI slots (4), floppy drive interface, IDE
interfaces (2)
NPU Options None

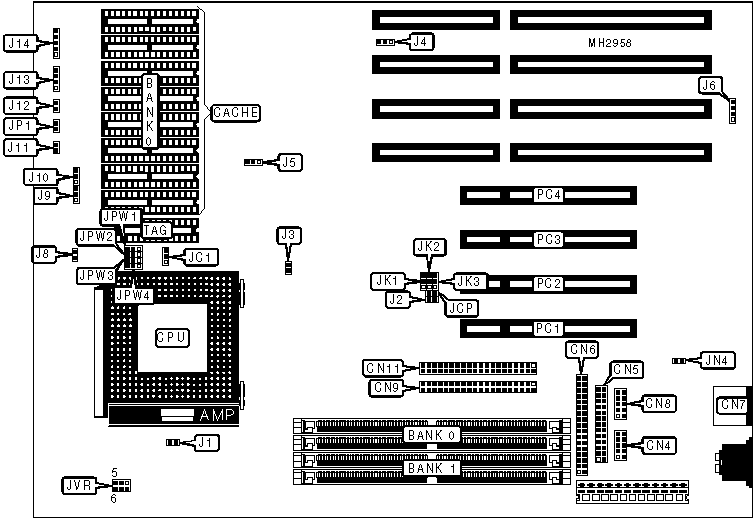

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | External battery | J6 |
|-------------------+----------+------------------+----------|
| Parallel port | CN5 | Chassis fan | J11 |
| | | power | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN6 | Reset switch | J12 |
| interface | | | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN7 | Speaker | J13 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN8 | Power LED & | J14 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN9 | IDE interface | JP1 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN11 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Cache type select write back | J1 | Open |
|---+----------------------------------+--------+------------|
| | Cache type select write through | J1 | Closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select | J2 | Open |
| | monochrome/EGA/VGA | | |
|---+----------------------------------+--------+------------|
| | Monitor type select CGA | J2 | Closed |
|---+----------------------------------+--------+------------|
| » | Pipeline mode enabled | J3 | Closed |
|---+----------------------------------+--------+------------|
| | Pipeline mode disabled | J3 | Open |
|---+----------------------------------+--------+------------|
| » | Flash BIOS voltage select 5v | J4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS voltage select 12v | J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CPU bus frequency ratio select | J8 | Open |
| | 2/3 | | |
|---+----------------------------------+--------+------------|
| | CPU bus frequency ratio select | J8 | Closed |
| | 1/2 | | |
|---+----------------------------------+--------+------------|
| » | Hardware reset disabled | J12 | Open |
|---+----------------------------------+--------+------------|
| | Hardware reset enabled | J12 | Closed |
|---+----------------------------------+--------+------------|
| » | Password disabled | JCP | Open |
|---+----------------------------------+--------+------------|
| | Password enabled | JCP | Closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JN4 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 512KB | (8) 64K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JPW1 | JPW2 | JPW3 | JPW4 |
|------------+-----------+-----------+-----------+-----------|
| 3.3v cache | pins 2 & | pins 2 & | pins 2 & | pins 2 & |
| | 3 closed | 3 closed | 3 closed | 3 closed |
|------------+-----------+-----------+-----------+-----------|
| Mixed | pins 1 & | pins 1 & | pins 1 & | pins 1 & |
| voltage | 2 closed | 2 closed | 2 closed | 2 closed |
| cache | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J9 | J10 | JC1 |
|-------+-----------------+-----------------+----------------|
| 256KB | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 512KB | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J5 |
|----------------------------+-------------------------------|
| 75MHz | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 90MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 100MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 120MHz | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JK1 | JK2 | JK3 |
|-------+-----------------+-----------------+----------------|
| 50MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 60MHz | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 66MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SPEED CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JVR |
|----------------------------+-------------------------------|
| 3.3v | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 3.45v | pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 3.6v | pins 5 & 6 closed |
+------------------------------------------------------------+
