# HYUNDAI ELECTRONICS, INC.
SUPER-16TM
Processor 8088
Processor 4.77/10MHz
Speed
Chip Set Unidentified
Max. Onboard 640KB
DRAM
Cache None
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, parallel port, serial
port
NPU Options 8087

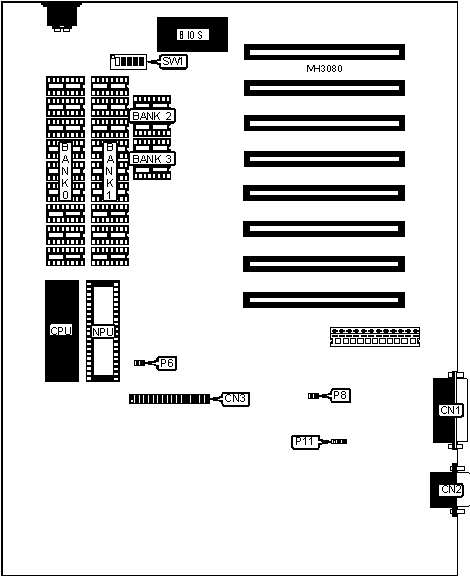

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| Parallel port | CN1 | LED connector | P6 |
|----------------------+----------+---------------+----------|
| Serial port | CN2 | Speaker | P8 |
|----------------------+----------+---------------+----------|
| Floppy drive | CN3 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| | RTC address select 3E0 | P11 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | RTC address select 2E0 | P11 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | NPU disabled | SW1/2 | On |
|---+---------------------------+---------------+------------|
| | NPU enabled | SW1/2 | Off |
|---+---------------------------+---------------+------------|
| | Monitor type select color | SW1/4 | On |
|---+---------------------------+---------------+------------|
| | Monitor type select | SW1/4 | Off |
| | monochrome | | |
|---+---------------------------+---------------+------------|
| | BIOS type select 32KB | SW1/5 | On |
|---+---------------------------+---------------+------------|
| | BIOS type select 16KB | SW1/5 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|---------+------------+------------+------------+-----------|
| 256KB | (8) 41256 | NONE | NONE | NONE |
|---------+------------+------------+------------+-----------|
| 512KB | (8) 41256 | (8) 41256 | NONE | NONE |
|---------+------------+------------+------------+-----------|
| 576KB | (8) 41256 | (8) 41256 | (2) 4164 | NONE |
|---------+------------+------------+------------+-----------|
| 640KB | (8) 41256 | (8) 41256 | (2) 4164 | (2) 4164 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/3 |
|------------------------------+-----------------------------|
| 512KB | Off |
|------------------------------+-----------------------------|
| 640KB | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | SW1/1 |
|-------------------------------+----------------------------|
| 4.77MHz | Off |
|-------------------------------+----------------------------|
| 10MHz | On |
+------------------------------------------------------------+
