# ELITEGROUP COMPUTER SYSTEMS, INC.
TS54P AIO (V1.0)
Processor Pentium
Processor Speed 75/90/100/120/133/150MHz
Chip Set Intel
Maximum Onboard 128MB
Memory
Cache 256/512KB
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, serial ports (2), VRM
connector, IR connector
NPU Options None

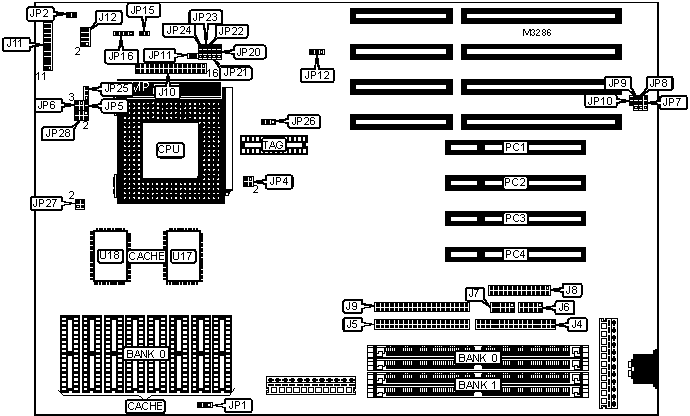

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------+----------+------------------+-----------|
| Floppy drive | J4 | Green PC | J11 pins |
| interface | | connector | 4 & 5 |
|------------------+----------+------------------+-----------|
| IDE interface 2 | J5 | Reset switch | J11 pins |
| | | | 9 & 10 |
|------------------+----------+------------------+-----------|
| Serial port 1 | J6 | Power LED & | J11 pins |
| | | keylock | 11 - 15 |
|------------------+----------+------------------+-----------|
| Serial port 2 | J7 | Speaker | J11 pins |
| | | | 17 - 20 |
|------------------+----------+------------------+-----------|
| Parallel port | J8 | IR connector | J12 |
|------------------+----------+------------------+-----------|
| IDE interface 1 | J9 | IDE interface | JP2 |
| | | LED | |
|------------------+----------+------------------+-----------|
| VRM connector | J10 | External battery | jp16 |
|------------------+----------+------------------+-----------|
| Turbo LED | J11 pins | 32-bit PCI slots | PC1 - PC4 |
| | 2 & 3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| | Normal COM2/4 | J12 | Pins 5 & 6, |
| | | | 7 & 8 closed |
|---+---------------------------------+-------+--------------|
| | IR function connector | J12 | Open |
|---+---------------------------------+-------+--------------|
| | 37C665GT enabled | JP7 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | 37C665GT disabled | JP7 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | ECP/EPP mode enabled | JP10 | Closed |
|---+---------------------------------+-------+--------------|
| | ECP/EPP mode disabled | JP10 | Open |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP12 | Pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP15 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP15 | Closed |
|---+---------------------------------+-------+--------------|
| | Cache type select write back | JP25 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Cache type select write through | JP25 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | PCI clock select PCICLK/4 | JP26 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | PCI clock select PCICLK/3 | JP26 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Banks 0/1 are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE SIZE |
|------------------------------------------------------------|
| Size | Bank 0 | U17 & U18 | TAG |
|-----------------+-------------+--------------+-------------|
| 256KB (A) | None | (2) 32K x 32 | (1) 8K x 8 |
| (pipeline | | | |
| burst) | | | |
|-----------------+-------------+--------------+-------------|
| 256KB (B) | None | (2) 32K x 32 | (1) 32K x 8 |
| (pipeline | | | |
| burst) | | | |
|-----------------+-------------+--------------+-------------|
| 256KB (C) | None | (2) 32K x 32 | (1) 8K x 8 |
| (burst) | | | |
|-----------------+-------------+--------------+-------------|
| 256KB (D) | None | (2) 32K x 32 | (1) 32K x 8 |
| (burst) | | | |
|-----------------+-------------+--------------+-------------|
| 256KB (E) | (8) 32K x 8 | None | (1) 8K x 8 |
|-----------------+-------------+--------------+-------------|
| 256KB (F) | (8) 32K x 8 | None | (1) 32K x 8 |
|-----------------+-------------+--------------+-------------|
| 512KB | (8) 64K x 8 | None | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER |
|------------------------------------------------------------|
| Size | JP20 | JP21 | JP22 | JP23 | JP24 |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (A) | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| (pipeline burst) | | | | | |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (B) | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| (pipeline burst) | | | | | |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (C) (burst) | 2 & 3 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (D) (burst) | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (E) | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
|--------------------+-------+-------+-------+-------+-------|
| 256KB (F) | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
|--------------------+-------+-------+-------+-------+-------|
| 512KB | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE VOLTAGE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| Mixed | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 3.3v | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED |
|------------------------------------------------------------|
| Setting | J10 | JP11 |
|----------------------+----------------------------+--------|
| 75/90/100/120/133MHz | Pins 4 & 5, 6 & 7, 19 & | Open |
| | 20, 21 & 22 closed | |
|----------------------+----------------------------+--------|
| 150MHz | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED |
|------------------------------------------------------------|
| Setting | JP4 | JP5 |
|-----------------+--------------------------+---------------|
| 75MHz | Open | Open |
|-----------------+--------------------------+---------------|
| 90MHz | Pins 3 & 4 closed | Open |
|-----------------+--------------------------+---------------|
| 100MHz | Pins 1 & 2, 3 & 4 closed | Open |
|-----------------+--------------------------+---------------|
| 120MHz | Pins 3 & 4 closed | Closed |
|-----------------+--------------------------+---------------|
| 133MHz | Pins 1 & 2, 3 & 4 closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE (75MHZ - 133MHZ ONLY) |
|------------------------------------------------------------|
| Setting | JP6 | JP27 |
|-----------------+----------------------+-------------------|
| 3.3v from power | Open | Open |
| supply | | |
|-----------------+----------------------+-------------------|
| 3.3v from VRM | Pins 1 & 2, 3 & 4 | Pins 1 & 2, 3 & 4 |
| | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE (75MHZ - 133MHZ ONLY) |
|------------------------------------------------------------|
| Setting | JP28 |
|----------------------------+-------------------------------|
| 3.14v - 3.46v | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 3.3v - 3.46v | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 3.45v - 3.6v | Pins 5 & 6 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL |
|------------------------------------------------------------|
| Setting | JP8 | JP9 |
|------------------+--------------------+--------------------|
| DMA1 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| DMA3 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
