# EVEREX SYSTEMS, INC.
EV-18160 (PWA-1021A-0000)
Processor 386
Processor Speed Undefined
NPU Options 387
Chip Set Unidentified
Maximum Onboard Memory Unidentified
Cache 64KB
BIOS Unidentified
I/O Options SCSI connector
Hard Drives supported Undefined
Floppy drives supported None
Dimensions Undefined

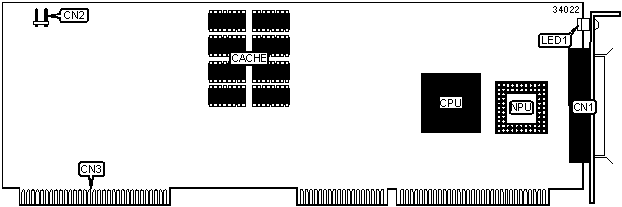

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| External SCSI | CN1 | MP System bus | CN3 |
| connector | | | |
|----------------------+----------+---------------+----------|
| CPU activity | CN2 | | |
| indicator connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------+-----------------------+-----------------------|
| 64KB | (8) 64K x 1 | (1) 64K x 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED |
|------------------------------------------------------------|
| Note: The exact color, status, & function of the CPU |
| activity indicator LED (LED1) is unidentified. |
+------------------------------------------------------------+
