# GENOA SYSTEMS CORPORATION
TURBOEXPRESS 586 VX (ATX VERSION)
Processor CX M1/AM K5/Pentium
Processor Speed 75/90/100/120/133/150/166/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector
NPU Options None

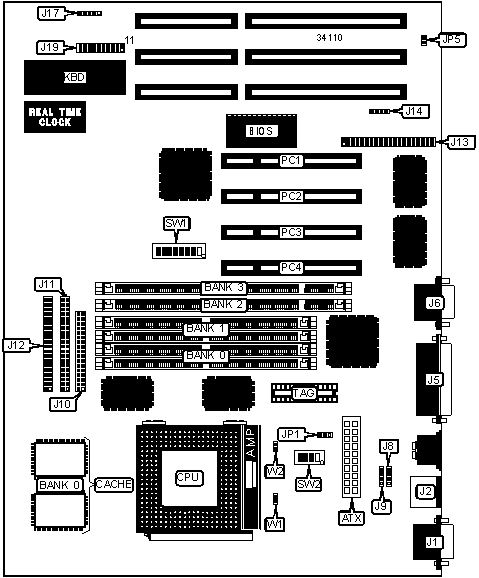

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| ATX power | ATX | IR connector | J17 |
| connector | | | |
|------------------+----------+------------------+-----------|
| Serial port 1 | J1 | Speaker | J19 pins |
| | | | 1 - 4 |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | J2 | Green PC | J19 pins |
| | | connector | 6 & 16 |
|------------------+----------+------------------+-----------|
| Parallel port | J5 | Soft on power | J19 pins |
| | | | 7 & 17 |
|------------------+----------+------------------+-----------|
| Serial port 2 | J6 | Turbo LED | J19 pins |
| | | | 8 & 18 |
|------------------+----------+------------------+-----------|
| USB connector | J8 | Reset switch | J19 pins |
| | | | 9 & 19 |
|------------------+----------+------------------+-----------|
| USB connector | J9 | IDE interface | J19 pins |
| | | LED | 10 & 20 |
|------------------+----------+------------------+-----------|
| Floppy drive | J10 | Power LED & | J19 pins |
| interface | | keylock | 11 - 15 |
|------------------+----------+------------------+-----------|
| IDE interface 2 | J11 | Chassis fan | JP1 |
| | | power | |
|------------------+----------+------------------+-----------|
| IDE interface 1 | J12 | 32-bit PCI slots | PC1 – PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J13 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J14 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | SW1/7 | Off |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | SW1/7 | On |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/8 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 256KB | (2) 32K x 32 | Unidentified |
|------------------+--------------------+--------------------|
| 512KB | (2) 64K x 32 | Unidentified |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CYRIX) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|120MHz |50MHz| 2x | On | On | On | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |55MHz| 2x | On | On | Off | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2x | Off | On | On | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | On | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AMD) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 75MHz |50MHz| 1.5x | On | On | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 90MHz |60MHz| 1.5x | Off | On | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|100MHz |66MHz| 1.5x | On | Off | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|120MHz |60MHz| 1.5x | Off | On | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |66MHz| 1.5x | On | Off | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2x | Off | On | On | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | On | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 75MHz |50MHz| 1.5x | On | On | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 90MHz |60MHz| 1.5x | Off | On | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|100MHz |66MHz| 1.5x | On | Off | On | Off | Off | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|120MHz |60MHz| 2x | Off | On | On | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |66MHz| 2x | On | Off | On | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2.5x | Off | On | On | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2.5x | On | Off | On | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 3x | On | Off | On | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | SW2/1 | SW2/2 | SW2/3 | SW2/4 | W1 | W2 |
|---------+--------+--------+--------+-------+--------+------|
| 3.5v | On | On | On | On | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
|Voltage |V core | SW2/1 | SW2/2 |SW2/3 |SW2/4 | W1 | W2 |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 2.5v | On | Off | On | Off |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 2.6v | Off | On | On | Off |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 2.7v | On | On | On | Off |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 2.8v | Off | Off | Off | On |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 2.9v | On | Off | Off | On |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 3.0v | Off | On | Off | On |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 3.4v | Off | On | On | On |Open |Closed |
|--------+-------+-------+-------+------+------+-----+-------|
| 3.3v | 3.5v | On | On | On | On |Open |Closed |
+------------------------------------------------------------+
