       # FORCOM TECHNOLOGY CORPORATION

          FT-386BL

          Processor            80386SX/CX486SLC
          Processor Speed      25/33/40MHz
          Chip Set             ALI
          Video Chip Set       Cirrus Logic
          Maximum Onboard      16MB
          Memory
          Maximum Video Memory 1MB
          Cache                None
          BIOS                 AMI
          Dimensions           220mm x 220mm
          I/O Options          Floppy drive interface, IDE interface,
                               game port, parallel port, serial ports
                               (2), VGA connector, riser slot
          NPU Options          80387SX

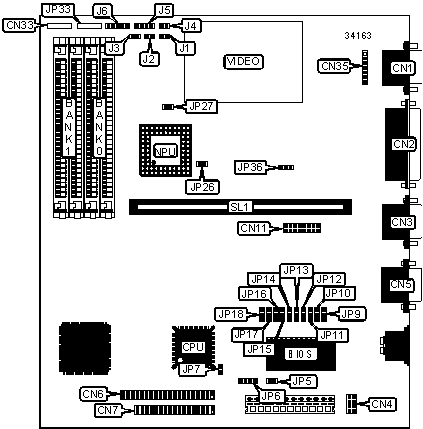

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | VGA port          |   CN1    | Turbo LED        |    J1    |
          |-------------------+----------+------------------+----------|
          | Parallel port     |   CN2    | Turbo switch     |    J2    |
          |-------------------+----------+------------------+----------|
          | Serial port 2     |   CN3    | IDE interface    |    J3    |
          |                   |          | LED              |          |
          |-------------------+----------+------------------+----------|
          | Auxiliary         |   CN4    | Reset switch     |    J4    |
          | keyboard          |          |                  |          |
          | connector         |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Serial port 1     |   CN5    | Speaker          |    J5    |
          |-------------------+----------+------------------+----------|
          | IDE interface     |   CN6    | Power LED &      |    J6    |
          |                   |          | keylock          |          |
          |-------------------+----------+------------------+----------|
          | Floppy drive      |   CN7    | External battery |   JP6    |
          | interface         |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Game port         |   CN11   | LED connector    |   JP33   |
          |-------------------+----------+------------------+----------|
          | VGA connector     |   CN35   | Riser slot       |   SL1    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Factory configured – do not     | CN33  | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          |   | Monitor type select color       |  JP5  |     Open     |
          |---+---------------------------------+-------+--------------|
          |   | Monitor type select monochrome  |  JP5  |    Closed    |
          |---+---------------------------------+-------+--------------|
          | » | CMOS memory normal operation    |  JP7  |     Open     |
          |---+---------------------------------+-------+--------------|
          |   | CMOS memory clear               |  JP7  |    Closed    |
          |---+---------------------------------+-------+--------------|
          | » | Serial port 1 enabled           |  JP9  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Serial port 1 disabled          |  JP9  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Parallel port enabled           | JP10  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Parallel port disabled          | JP10  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | IDE interface enabled           | JP11  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | IDE interface disabled          | JP11  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Serial port 1 address select    | JP12  |  Pins 1 & 2  |
          |   | 3F8H – 3FFH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Serial port 1 address select    | JP12  |  Pins 2 & 3  |
          |   | 3E8H – 3EFH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Floppy drive interface enabled  | JP13  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Floppy drive interface disabled | JP13  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | HDC enabled                     | JP14  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | HDC disabled                    | JP14  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Parallel port address select    | JP15  |  Pins 1 & 2  |
          |   | 378H – 37FH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Parallel port address select    | JP15  |  Pins 2 & 3  |
          |   | 278H – 27FH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Serial port 2 enabled           | JP16  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Serial port 2 disabled          | JP16  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Game port enabled               | JP17  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Game port disabled              | JP17  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Serial port 2 address select    | JP18  |  Pins 1 & 2  |
          |   | 2F8H – 2FFH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Serial port 2 address select    | JP18  |  Pins 2 & 3  |
          |   | 2E8H – 2EFH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | IRQ9 enabled                    | JP26  |    Closed    |
          |---+---------------------------------+-------+--------------|
          |   | IRQ9 disabled                   | JP26  |     Open     |
          |---+---------------------------------+-------+--------------|
          | » | NPU synchronous with CPU        | JP27  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | NPU asynchronous with CPU       | JP27  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | On board video enabled          | JP36  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | On board video disabled         | JP36  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      512KB       |    (2) 256K x 9    |        None        |
          |------------------+--------------------+--------------------|
          |       1MB        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       2MB        |     (2) 1M x 9     |        None        |
          |------------------+--------------------+--------------------|
          |       4MB        |     (2) 1M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (2) 4M x 9     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |     (2) 4M x 9     |     (2) 4M x 9     |
          |------------------------------------------------------------|
          | Note: The location of banks 0 & 1 is unidentified.         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          | Note: Board accepts 256KB/512KB/1MB video memory. The size |
          | of the chips is unidentified.                              |
          +------------------------------------------------------------+
