# FIRST INTERNATIONAL COMPUTER, INC.
KN-6010
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 768MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connectors (2), USB connectors
(2), ATX power connector, CPU Slot 1
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

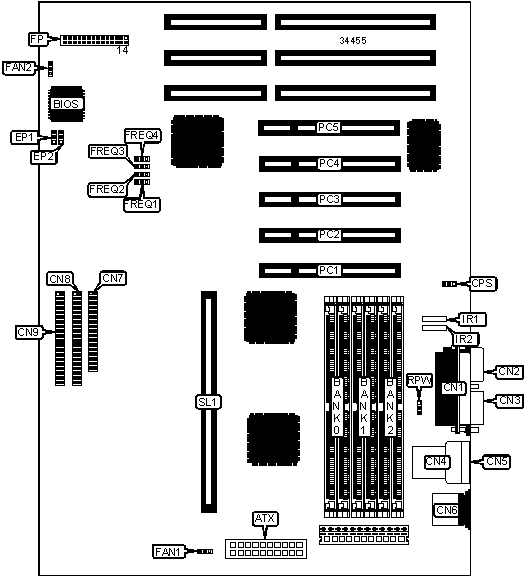

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| ATX power | ATX | Power LED & | FP/pins 1 |
| connector | | keylock | - 5 |
|------------------+----------+------------------+-----------|
| Parallel port | CN1 | Speaker | FP/pins 7 |
| | | | - 10 |
|------------------+----------+------------------+-----------|
| Serial port 1 | CN2 | Reset switch | FP/pins |
| | | | 12 & 13 |
|------------------+----------+------------------+-----------|
| Serial port 2 | CN3 | Turbo LED | FP/pins |
| | | | 15 & 16 |
|------------------+----------+------------------+-----------|
| USB connector 1 | CN4 | Turbo switch | FP/pins |
| | | | 18 & 19 |
|------------------+----------+------------------+-----------|
| USB connector 2 | CN5 | IDE interface | FP/pins |
| | | LED | 21 & 22 |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | CN6 | IR connector | IR1 |
|------------------+----------+------------------+-----------|
| Floppy drive | CN7 | IR connector | IR2 |
| interface | | (fast) | |
|------------------+----------+------------------+-----------|
| IDE interface 1 | CN8 | 32-bit PCI slots | PC1 – PC5 |
|------------------+----------+------------------+-----------|
| IDE interface 2 | CN9 | Remote power | RPW |
| | | connector | |
|------------------+----------+------------------+-----------|
| CPU fan power | FAN1 | CPU Slot 1 | SL1 |
|------------------+----------+------------------+-----------|
| Chassis fan | FAN2 | | |
| power | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+----------+-------------|
| » | Password normal operation | CPS | Open |
|---+-------------------------------+----------+-------------|
| | Password clear | CPS | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 152MB | (2) 16M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 16M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 176MB | (2) 16M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 208MB | (2) 16M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 224MB | (2) 16M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 264MB | (2) 16M x 36 | (2) 16M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 272MB | (2) 16M x 36 | (2) 16M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 288MB | (2) 16M x 36 | (2) 16M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 320MB | (2) 16M x 36 | (2) 16M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------+---------------+---------------+---------------|
| 256MB | (2) 32M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 | None |
|------------+---------------+---------------+---------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 | None |
|------------+---------------+---------------+---------------|
| 520MB | (2) 32M x 36 | (2) 32M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 528MB | (2) 32M x 36 | (2) 32M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 544MB | (2) 32M x 36 | (2) 32M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 576MB | (2) 32M x 36 | (2) 32M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 640MB | (2) 32M x 36 | (2) 32M x 36 | (2) 16M x 36 |
|------------+---------------+---------------+---------------|
| 768MB | (2) 32M x 36 | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|FREQ1 |FREQ2 |FREQ3 |FREQ4 |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x | Open | Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 266MHz | 66MHz | 4x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 300MHz | 66MHz | 4.5x | Open |Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 333MHz | 66MHz | 5x |Closed| Open | Open |Closed|
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 1MB FLASH BIOS SELECTION |
|------------------------------------------------------------|
| Type | EP1 | EP2 |
|------------------+--------------------+--------------------|
| Intel | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| SST 29EE010 | Pins 2 & 3 closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 2MB FLASH BIOS SELECTION |
|------------------------------------------------------------|
| Type | EP1 | EP2 |
|------------------+--------------------+--------------------|
| AMD AM29F002T | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| ATMEL AT29C020 | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| MXIC MX28F2000P | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| SST 29EE020 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
