# EURONE (HK) CO., LTD.
MS-5120
Processor CX 6X86/IBM 6X86/AM K5/AM K6/Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connector, USB connector
NPU Options None

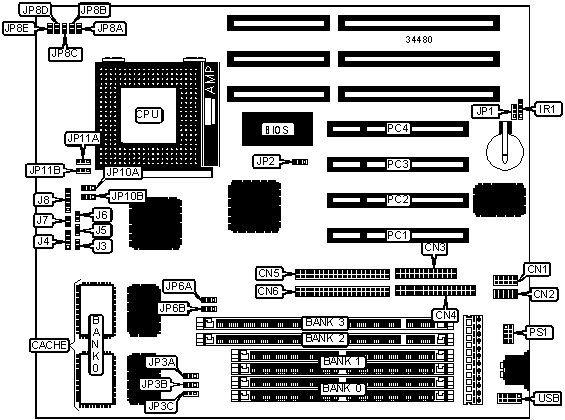

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Speaker | J4 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN2 | Turbo LED | J5 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | Turbo switch | J6 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Reset switch | J7 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN5 | Power LED & | J8 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN6 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| IR connector | IR1 | PS/2 mouse | PS1 |
| | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface LED | J3 | USB connector | USB |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP1 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP1 | Closed |
|---+---------------------------------+-------+--------------|
| » | Flash BIOS voltage select 12v | JP2 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Flash BIOS voltage select 5v | JP2 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8A | Unidentified |
| | alter (CPU voltage) | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8B | Unidentified |
| | alter (CPU voltage) | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8C | Unidentified |
| | alter (CPU voltage) | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8D | Unidentified |
| | alter (CPU voltage) | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8E | Unidentified |
| | alter (CPU voltage) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------+------------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|--------------+------------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|--------------+------------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|--------------+------------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|--------------+------------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|--------------+------------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|--------------+------------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|--------------+------------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|--------------+------------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|--------------+------------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|--------------+------------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|--------------+------------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|--------------+------------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|--------------+------------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------------------------------------------------|
| Note: If DIMMs are used with SIMMs, SIMM bank 0 & |
| DIMM bank 2 cannot be populated at the same time. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JP6A | JP6B |
|------------------+--------------------+--------------------|
| 3.3v | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 5v | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (2) 32K x 32 |
|----------------------------+-------------------------------|
| 512KB | (2) 64K x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CYRIX) |
|------------------------------------------------------------|
|CPU speed| Clock |Multiplier|JP3A |JP3B |JP3C |JP11A|JP11B|
| | speed | | | | | | |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 150MHz | 60MHz | 2x |2 & 3|2 & 3|1 & 2|2 & 3|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 200MHz | 66MHz | 2x |2 & 3|1 & 2|2 & 3|2 & 3|1 & 2|
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AMD) |
|------------------------------------------------------------|
| Note: The CPU speeds for the AMD processor is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL) |
|------------------------------------------------------------|
|CPU speed| Clock |Multiplier|JP3A |JP3B |JP3C |JP11A|JP11B|
| | speed | | | | | | |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 75MHz | 50MHz | 1.5x |2 & 3|2 & 3|2 & 3|1 & 2|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 90MHz | 60MHz | 1.5x |2 & 3|2 & 3|1 & 2|1 & 2|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 100MHz | 66MHz | 1.5x |2 & 3|1 & 2|2 & 3|1 & 2|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 120MHz | 60MHz | 2x |2 & 3|2 & 3|1 & 2|2 & 3|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 133MHz | 66MHz | 2x |2 & 3|1 & 2|2 & 3|2 & 3|1 & 2|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 150MHz | 60MHz | 2.5x |2 & 3|2 & 3|1 & 2|2 & 3|2 & 3|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 166MHz | 66MHz | 2.5x |2 & 3|1 & 2|2 & 3|2 & 3|2 & 3|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 180MHz | 60MHz | 3x |2 & 3|2 & 3|1 & 2|1 & 2|2 & 3|
|---------+---------+----------+-----+-----+-----+-----+-----|
| 200MHz | 66MHz | 3x |2 & 3|1 & 2|2 & 3|1 & 2|2 & 3|
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP10A | JP10B |
|------------------+--------------------+--------------------|
| P54C | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| P55C | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
