# EFA CORPORATION
P6KFX-ATX
Processor Pentium II
Processor Speed 200/233/266/300MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 384MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Award
Dimensions 305mm x 220mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), IR connector, ATX
power connector
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

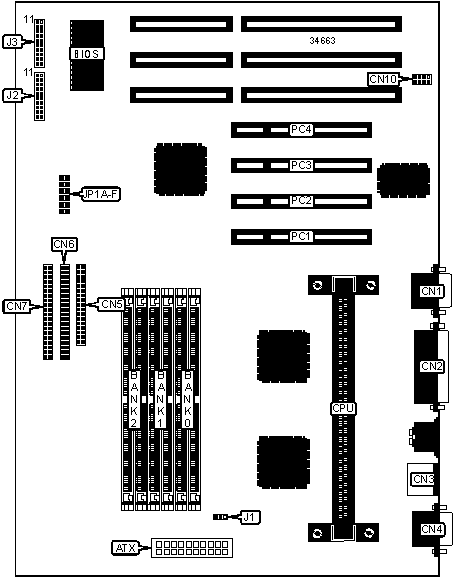

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| ATX power | ATX | Power LED & | J2/pins 1 |
| connector | | keylock | - 5 |
|------------------+----------+------------------+-----------|
| Serial port 2 | CN1 | Speaker | J2/pins |
| | | | 11 - 14 |
|------------------+----------+------------------+-----------|
| Parallel port | CN2 | IDE interface | J2/pins 8 |
| | | LED | & 18 |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | CN3 | Reset switch | J2/pins 9 |
| | | | & 19 |
|------------------+----------+------------------+-----------|
| Serial port 1 | CN4 | External battery | J3/pins 1 |
| | | | - 4 |
|------------------+----------+------------------+-----------|
| Floppy drive | CN5 | IR connector | J3/pins |
| interface | | | 11 - 16 |
|------------------+----------+------------------+-----------|
| IDE interface 2 | CN6 | Soft off power | J3/pins |
| | | supply | 19 & 20 |
|------------------+----------+------------------+-----------|
| IDE interface 1 | CN7 | 32-bit PCI slots | PC1 – PC4 |
|------------------+----------+------------------+-----------|
| CPU fan power | J1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | CN10 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | J3 | Pins 5 & 6 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | J3 | Pins 6 & 7 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+-----------------+----------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|---------+-----------------+----------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|---------+-----------------+----------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|---------+-----------------+----------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|---------+-----------------+----------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|---------+-----------------+----------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|---------+-----------------+----------------+---------------|
| 48MB | (2) 2M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|---------+-----------------+----------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|---------+-----------------+----------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|---------+-----------------+----------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|---------+-----------------+----------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|---------+-----------------+----------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|---------+-----------------+----------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|---------+-----------------+----------------+---------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|---------+-----------------+----------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x |
| 32 SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP1A | JP1B | JP1C | JP1D | JP1E | JP1F |
|--------+--------+--------+--------+-------+--------+-------|
| 200MHz | Open | Closed | Open | Open | Closed | Open |
|--------+--------+--------+--------+-------+--------+-------|
| 233MHz | Open | Closed | Closed | Open | Closed | Open |
|--------+--------+--------+--------+-------+--------+-------|
| 266MHz | Closed | Open | Open | Open | Closed | Open |
|--------+--------+--------+--------+-------+--------+-------|
| 300MHz | Closed | Open | Closed | Open | Closed | Open |
+------------------------------------------------------------+
