# FREE COMPUTER TECHNOLOGY, INC.
P5F84
Processor CX 6X86L/CX 686MX/IBM 6X86L/IBM 6X86MX/AM
K5/AM K6/Pentium
Processor Speed 75/90/100/120/133/150/166/200/233/266/300MHz
Chip Set VIA
Video Chip Set None
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 512KB
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
interface, serial ports (2), IR connector,
USB connector, ATX power connector
NPU Options None

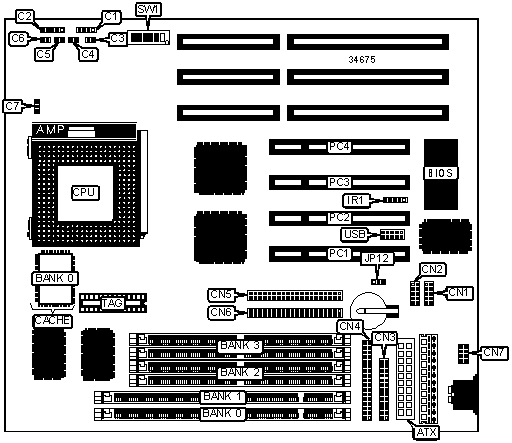

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| ATX power | ATX | Serial port 2 | CN2 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Speaker | C1 | Parallel port | CN3 |
|-------------------+----------+------------------+----------|
| Power LED & | C2 | Floppy drive | CN4 |
| keylock | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface LED | C3 | IDE interface 2 | CN5 |
|-------------------+----------+------------------+----------|
| Turbo LED | C4 | IDE interface 1 | CN6 |
|-------------------+----------+------------------+----------|
| Reset switch | C5 | PS/2 mouse port | CN7 |
|-------------------+----------+------------------+----------|
| Soft off power | C6 | IR connector | IR1 |
| supply | | | |
|-------------------+----------+------------------+----------|
| CPU fan power | C7 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | USB connector | USB |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | JP12 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP12 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|------------------+--------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 16M x 64 | None |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 32M x 64 | None |
|------------------+--------------------+--------------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
|------------------+--------------------+--------------------|
| 264MB | (1) 32M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 272MB | (1) 32M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 288MB | (1) 32M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 320MB | (1) 32M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 384MB | (1) 32M x 64 | (1) 16M x 64 |
|------------------+--------------------+--------------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 512KB | (1) 64K x 64 | Unidentified |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86L) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |55MHz| 2x | On | Off | Off | On | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2x | On | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |75MHz| 2x | On | Off | Off | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86MX) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |60MHz| 2.5x | On | On | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 2.5x | On | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |75MHz| 2x | On | Off | Off | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |66MHz| 3x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |75MHz| 2.5x | On | On | Off | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|266MHz |66MHz| 4x | On | Off | On | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (IBM 6X86L) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |55MHz| 2x | On | Off | Off | On | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2x | On | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |75MHz| 2x | On | Off | Off | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (IBM 6X86MX) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |60MHz| 2.5x | On | On | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2x | On | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 2.5x | On | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |75MHz| 2x | On | Off | Off | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |66MHz| 3x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |75MHz| 2.5x | On | On | Off | Off | On | Off |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|266MHz |66MHz| 4x | On | Off | On | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K5) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 75MHz |50MHz| 1.5x | Off | Off | Off | On | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 90MHz |60MHz| 1.5x | Off | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|100MHz |66MHz| 1.5x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|120MHz |60MHz| 1.5x | Off | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |66MHz| 1.5x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 1.75x | On | On | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 1.75x | On | On | Off | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K6) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2.5x | On | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 3x | Off | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |66MHz| 3.5x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|266MHz |66MHz| 4x | On | Off | On | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|300MHz |66MHz| 4.5x | On | On | On | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 75MHz |50MHz| 1.5x | Off | Off | Off | On | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
| 90MHz |60MHz| 1.5x | Off | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|100MHz |66MHz| 1.5x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|120MHz |60MHz| 2x | On | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|133MHz |66MHz| 2x | On | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|150MHz |60MHz| 2.5x | On | On | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2.5x | On | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 3x | Off | Off | Off | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL MMX) |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|166MHz |66MHz| 2.5x | On | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|200MHz |66MHz| 3x | Off | On | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |66MHz| 3.5x | Off | Off | Off | On | Off | On |
+------------------------------------------------------------+
