# FLASH TECH, INC.
SL-66D
Device Type Mainboard
Processor Pentium II/Celeron
Processor Speed 233/266/300/333MHz
Chip Set Intel 440EX
Maximum Onboard 256MB (EDO & SDRAM supported)
Memory
Cache 256/512KB (on the Pentium II CPU)
BIOS Award
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), AGP slot, USB ports
(2), IR connector, green PC connector, ATX
power connector
Dimensions 305mm x 170mm
IMG IMG 1
+------------------------------------------------------------+

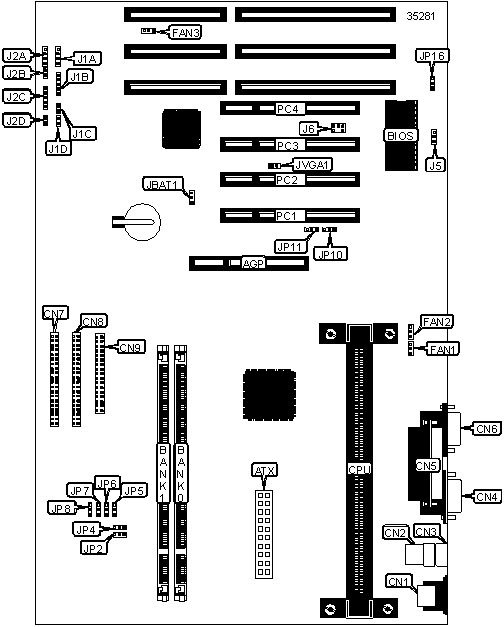

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | Chassis fan | FAN3 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | IDE interface | J1A |
| connector | | LED | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN1 | IR connector | J1B |
|-------------------+----------+------------------+----------|
| USB connector 2 | CN2 | Power switch | J1C |
|-------------------+----------+------------------+----------|
| USB connector 1 | CN3 | SMI switch | J1D |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN4 | Speaker | J2A |
|-------------------+----------+------------------+----------|
| Parallel port | CN5 | Reset switch | J2B |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN6 | Power LED & | J2C |
| | | keylock | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN7 | Turbo LED | J2D |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN8 | Wake on LAN | J5 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN9 | SB Link | J6 |
| interface | | | |
|-------------------+----------+------------------+----------|
| CPU fan | FAN1 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Power fan | FAN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | JBAT1 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JBAT1 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | Normal VGA card enabled | JVGA1 | Closed |
|---+------------------------------+-------+-----------------|
| | Special VGA card enabled | JVGA1 | Open |
|---+------------------------------+-------+-----------------|
| » | Power lost recovery normal | JP16 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Power lost recovery enabled | JP16 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USB PORT SELECTION |
|------------------------------------------------------------|
| Function | JP10 | JP11 |
|----------------------------------+------------+------------|
| » | Redirect USB1 to AGP port | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed |
|---+------------------------------+------------+------------|
| | Redirect all USB ports to | Pins 2 & 3 | Pins 2 & 3 |
| | USB connector | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1MB x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1MB x 64 | (1) 1MB x 64 |
|------------------+--------------------+--------------------|
| 16MB | (1) 2MB x 64 | None |
|------------------+--------------------+--------------------|
| 24MB | (1) 2MB x 64 | (1) 1MB x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 2MB x 64 | (1) 2MB x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4MB x 64 | None |
|------------------+--------------------+--------------------|
| 40MB | (1) 4MB x 64 | (1) 1MB x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4MB x 64 | (1) 2MB x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 4MB x 64 | (1) 4MB x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8MB x 64 | None |
|------------------+--------------------+--------------------|
| 72MB | (1) 8MB x 64 | (1) 1MB x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8MB x 64 | (1) 2MB x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8MB x 64 | (1) 4MB x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 8MB x 64 | (1) 8MB x 64 |
|------------------+--------------------+--------------------|
| 136MB | (1) 16MB x 64 | None |
|------------------+--------------------+--------------------|
| 144MB | (1) 16MB x 64 | (1) 1MB x 64 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16MB x 64 | (1) 2MB x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16MB x 64 | (1) 4MB x 64 |
|------------------+--------------------+--------------------|
| 224MB | (1) 16MB x 64 | (1) 8MB x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 16MB x 64 | (1) 16MB x 64 |
|------------------------------------------------------------|
| Note: Board accepts both EDO and SDRAM. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock |Multiplier|JP2 |JP4 | JP5 | JP6 | JP7 |JP8 |
| Speed | speed | | | | | | | |
|-------+--------+----------+----+----+-----+-----+-----+----|
|233MHz | 66MHz | 3.5x |1 & |1 & |2 & 3|Open |Open |2 & |
| | | | 2 | 2 | | | | 3 |
|-------+--------+----------+----+----+-----+-----+-----+----|
|266MHz | 66MHz | 4x |1 & |1 & |Open |2 & 3|2 & 3|2 & |
| | | | 2 | 2 | | | | 3 |
|-------+--------+----------+----+----+-----+-----+-----+----|
|300MHz | 66MHz | 4.5x |1 & |1 & |Open |2 & 3|Open |2 & |
| | | | 2 | 2 | | | | 3 |
|-------+--------+----------+----+----+-----+-----+-----+----|
|333MHz | 66MHz | 5x |1 & |1 & |Open |Open |2 & 3|2 & |
| | | | 2 | 2 | | | | 3 |
|------------------------------------------------------------|
|Note: Numbers designate pins that should be closed. |
+------------------------------------------------------------+
