# EURONE
EM-5570
Device Type Mainboard
Processor CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/IDT
C6/AM K6/
Pentium/Pentium MMX
Processor Speed 75/90/100/120/133/150/166/180/200/233/266MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 640MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 1024KB
BIOS AMI
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
game/sound interface, IDE interfaces (2),
parallel port, PS/2 mouse port, PS/2 mouse
interface, serial ports (2), ATX power
connector, AGP slot, digital line in, digital
line out, audio in – CD-ROMs (2)
NPU Options None

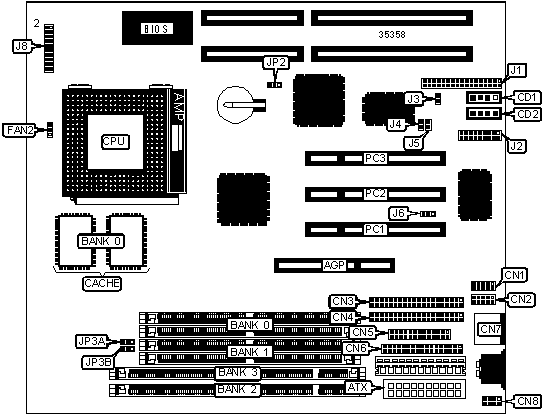

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+----------------+------------|
| AGP slot | AGP | Game/sound | J1 |
| | | connector | |
|-------------------+----------+----------------+------------|
| ATX power | ATX | ATX form card | J2 |
| connector | | connector | |
|-------------------+----------+----------------+------------|
| Audio in – CD-ROM | CD1 | Digital line | J4 |
| (Sony) | | in | |
|-------------------+----------+----------------+------------|
| Audio in – CD-ROM | CD2 | Digital line | J5 |
| (Panasonic) | | out | |
|-------------------+----------+----------------+------------|
| Serial port 1 | CN1 | Wake on LAN | J6 |
| | | connector | |
|-------------------+----------+----------------+------------|
| Serial port 2 | CN2 | Power LED & | J8/pins |
| | | keylock | 1/3/5/7/9 |
|-------------------+----------+----------------+------------|
| IDE interface 2 | CN3 | Speaker | J8/pins |
| | | | 2/4/6/8 |
|-------------------+----------+----------------+------------|
| IDE interface 1 | CN4 | Turbo LED | J8/pins 13 |
| | | | & 14 |
|-------------------+----------+----------------+------------|
| Parallel port | CN5 | IDE interface | J8/pins 15 |
| | | LED | & 16 |
|-------------------+----------+----------------+------------|
| Floppy drive | CN6 | Reset switch | J8/pins 17 |
| interface | | | & 18 |
|-------------------+----------+----------------+------------|
| PS/2 mouse port | CN7 | Soft off power | J8/pins 19 |
| | | supply | & 20 |
|-------------------+----------+----------------+------------|
| PS/2 mouse | CN8 | 32-bit PCI | PC1 – PC3 |
| interface | | slots | |
|-------------------+----------+----------------+------------|
| CPU fan power | FAN2 | | |
|------------------------------------------------------------|
| Note: J2 contains a USB, IR and mouse connector. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| | Microphone type select standard | J3 | Open |
|---+---------------------------------+-------+--------------|
| | Microphone type select special | J3 | Closed |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP2 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP2 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JP3A | JP3B |
|------------------+--------------------+--------------------|
| 3.3v | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 5v | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 1MB | (2) 128K x 32 |
+------------------------------------------------------------+
