# FREETECH CORPORATION
P6F90I
Device Type Mainboard
Processor Pentium II/Celeron
Processor Speed 233/266/300/333
Chip Set Intel 440LX
Maximum Onboard 384MB (EDO & SDRAM supported)
Memory
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 200mm x 304mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), IR connector, USB
connectors (2), ATX power connector, AGP slot

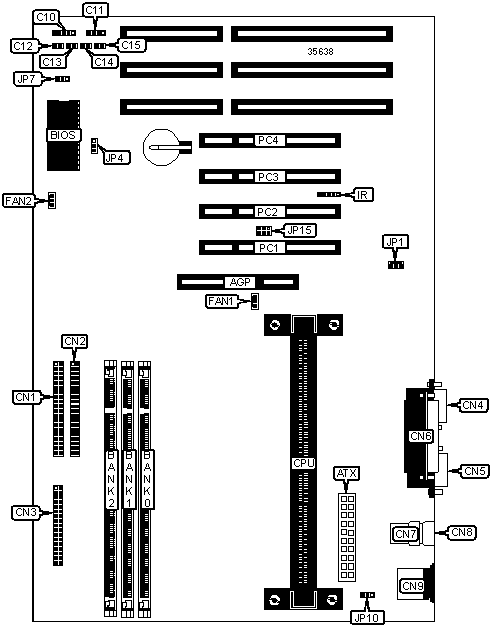

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | Parallel port | CN6 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | USB connector 1 | CN7 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Speaker | C11 | USB connector 2 | CN8 |
|-------------------+----------+------------------+----------|
| Power switch | C12 | PS/2 mouse port | CN9 |
|-------------------+----------+------------------+----------|
| Reset switch | C13 | Power LED & | C10 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Green PC LED | C14 | CPU fan power | FAN1 |
|-------------------+----------+------------------+----------|
| IDE interface LED | C15 | Chassis fan | FAN2 |
| | | power | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN1 | IR connector | IR |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN2 | WAKE on LAN | JP1 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN3 | SB link | JP15 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | CMOS memory normal operation | JP4 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | JP4 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Auto power on disabled | JP7 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Auto power on enabled | JP7 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Keyboard and mouse use 5v standby | JP10 | Pins 2 & 3 |
| | power | | closed |
|---+-----------------------------------+-------+------------|
| | Keyboard and mouse use 5v power | JP10 | Pins 1 & 2 |
| | enabled | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 128MB | 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 | None |
|------------+---------------+---------------+---------------|
| 320MB | (1) 16M x 64 | (1) 16M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| The 128KB cache is location on the Cleleron 300A & 333. |
| The 256/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
