# FIRST INTERNATIONAL COMPUTER, INC.
PA-1000
Device Type Mainboard
Processor Pentium
Processor Speed 90/100/120MHz
Chip Set Unidentified
Maximum Onboard 192MB
Memory
Cache 256/512/1024KB
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, PS/2 mouse interface, serial ports (2)

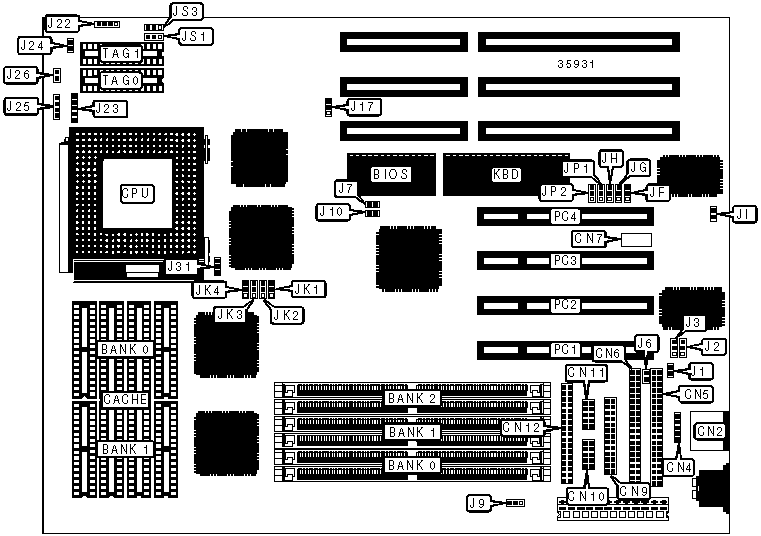

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN2 | IDE interface | J1 |
| | | LED 1 | |
|-------------------+----------+------------------+----------|
| PS/2 mouse | CN4 | IDE interface | J6 |
| interface | | LED 2 | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN5 | CPU fan power | J9 |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN6 | Power LED & | J23 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Parallel port | CN9 | Reset switch | J24 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN10 | Speaker | J25 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN11 | Turbo LED | J26 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN12 | 32-bit PCI slots | PC1 - |
| interface | | | PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | CN7 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | J7 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | J7 | Closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select | J10 | Unidentified |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J22 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | Cache type select write back | J31 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Cache type select write through | J31 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JH | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | Used as IR port | JI | Open |
|---+---------------------------------+-------+--------------|
| | Used as serial port | JI | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JK1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JK2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JK3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JK4 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | None | None |
|------------+---------------+---------------+---------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 6MB | (2) 256K x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 12MB | (2) 1M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 18MB | (2) 1M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 36MB | (2) 4M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 42MB | (2) 4M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 66MB | (2) 4M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 68MB | (2) 8M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 4M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 74MB | (2) 8M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 98MB | (2) 8M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 130MB | (2) 8M x 36 | (2) 8M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 8M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG1 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 512KB | (4) 64K x 8 | (4) 64K x 8 | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 1MB | (4) 128K x 8 | (4) 128K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS3 |
|------------------+--------------------+--------------------|
| 256KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 512KB | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 1MB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JP1 | JP2 |
|------------------+--------------------+--------------------|
| 1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 3 | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 INTERRUPT SELECTION |
|------------------------------------------------------------|
| Index address | Data address | JF | JG |
|---------------+--------------+----------------+------------|
| 26EH | 26FH | Pins 1 & 2 | Pins 2 & 3 |
| | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| KEYBOARD CONTROLLER SELECTION |
|------------------------------------------------------------|
| Setting | J17 | RN6 | RN7 | RN8 |
|----------+-------------+-----------+-----------+-----------|
| Internal | Pins 1 & 2 | Not | Not | Installed |
| | closed | installed | installed | |
|----------+-------------+-----------+-----------+-----------|
| External | Pins 2 & 3 | Installed | Installed | Not |
| | closed | | | installed |
|------------------------------------------------------------|
| Note: The location of RN6, RN7 & RN8 are unidentified. |
+------------------------------------------------------------+
