# J-BOND COMPUTER SYSTEMS CORPORATION
A340C-G01
Processor 80386DX
Processor Speed 33/40MHz
Chip Set ETEQ
Max. Onboard DRAM 32MB
Cache 64/256KB
Dimensions 330mm x 218mm
BIOS AMI
I/O Options None
NPU Options 80387/3167

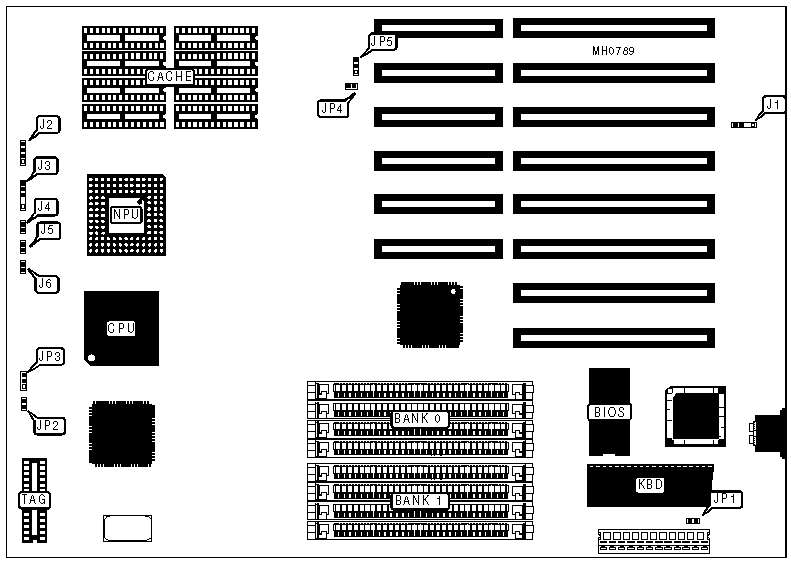

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J1 | Turbo switch | J4 |
|---------------------+----------+----------------+----------|
| Speaker | J2 | Turbo LED | J5 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J3 | Reset switch | J6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | CPU speed switchable from turbo | JP1 | Open |
| | switch | | |
|---+------------------------------------+--------+----------|
| » | CPU speed switchable from turbo | JP1 | Closed |
| | switch or keyboard | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 64KB | (8) 8K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP2 | JP3 | JP4 | JP5 |
|-------+--------+-----------------+--------+----------------|
| 64KB | Open | pins 1 & 2 | Open | pins 1 & 2 |
| | | closed | | closed |
|-------+--------+-----------------+--------+----------------|
| 256KB | Closed | pins 2 & 3 | Closed | pins 1 & 2 |
| | | closed | | closed |
+------------------------------------------------------------+
