# J-MARK COMPUTER CORPORATION
JET-386E CACHE
Processor 80386DX
Processor Speed 33/40MHz
Chip Set ETEQ
Max. Onboard DRAM 32MB
Cache 64/128/256KB
BIOS AMI/Award
Dimensions 254mm x 220mm
I/O Options None
NPU Options 80387/3167

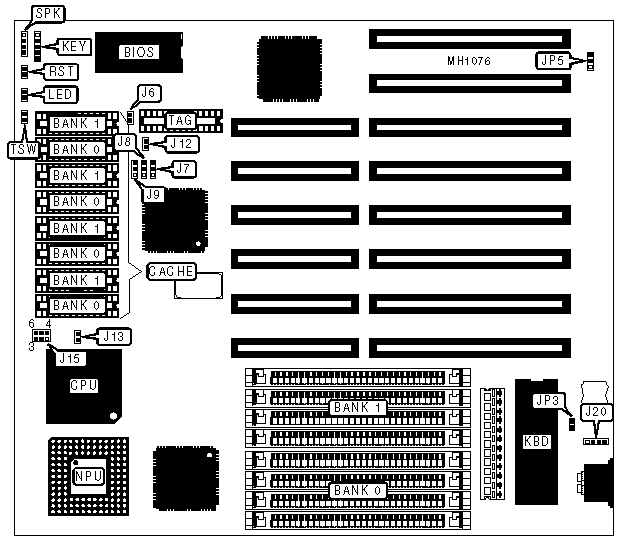

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J20 | Reset switch | RST |
|---------------------+----------+----------------+----------|
| Power LED & keylock | KEY | Speaker | SPK |
|---------------------+----------+----------------+----------|
| Turbo LED | LED | Turbo switch | TSW |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | JP3 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP3 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP5 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J6 | J7 | J8 | J9 | J12 | J13 | J15 |
|-------+--------+------+-----+-----+--------+--------+------|
| 64KB | Open | 1 & | 1 & | 2 & | Open | Open | 1 & |
| | | 2 | 2 | 3 | | | 2 |
|-------+--------+------+-----+-----+--------+--------+------|
| 128KB | Closed | 1 & | 2 & | 2 & | Open | Closed | 4 & |
| | | 2 | 3 | 3 | | | 5 |
|-------+--------+------+-----+-----+--------+--------+------|
| 256KB | Closed | 2 & | 2 & | 2 & | Closed | Closed | 5 & |
| | | 3 | 3 | 3 | | | 6 |
|------------------------------------------------------------|
| Note:Pins designated should be in the closed position. |
+------------------------------------------------------------+
