# ILON USA, INC.
M-396
Processor 80386SX
Processor Speed 16/20/25MHz
Chip Set PC CHIPS
Max. Onboard DRAM 16MB
Cache None
BIOS AMI
Dimensions 220mm x 170mm
I/O Options None
NPU Options 80387SX

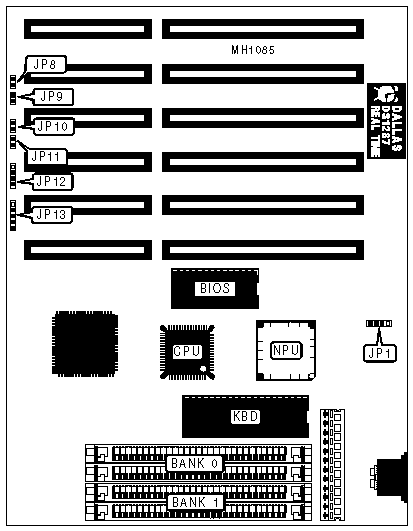

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | JP1 | Turbo switch | JP11 |
|------------------+----------+-------------------+----------|
| Reset switch | JP9 | Speaker | JP12 |
|------------------+----------+-------------------+----------|
| Turbo LED | JP10 | Power LED & | JP13 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Battery type select internal | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Battery type select external | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP8 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP8 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 512KB | (2) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
