# KINGSTON TECHNOLOGY CORPORATION
SX/33LZM
Processor 80386SX (Replaces 80286)
Processor Speed 33MHz
Chip Set Kingston
Max. Onboard DRAM None
Cache 16KB
BIOS None
Dimensions 64mm x 51mm
I/O Options None
NPU Options 80387SX

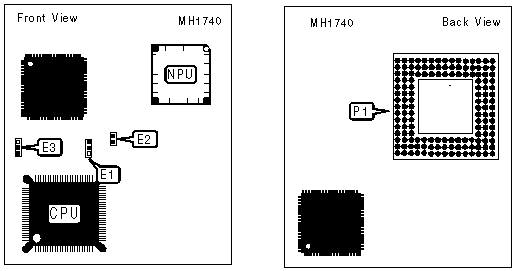

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|---------------------------------------------+--------------|
| Processor upgrade to system board connector | P1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | E1 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | E2 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | NPU disabled | E3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | NPU enabled | E3 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
