# INTEL CORPORATION
PENTIUM HENDRIX
Processor Pentium
Processor 60/66MHz
Speed
Chip Set Intel
Max. Onboard 128MB
DRAM
Cache 256/512KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI bus slots (3), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), VGA feature connector,VGA
interface
NPU Options None

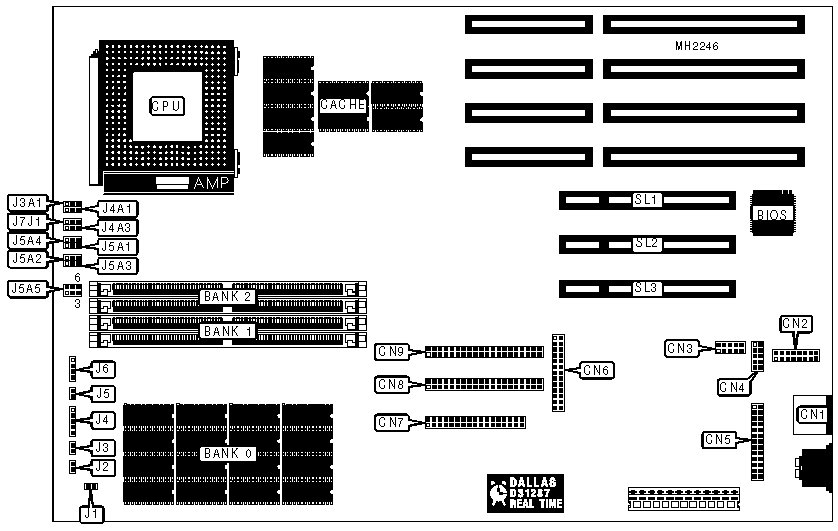

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN1 | Turbo switch | J1 |
|-------------------+----------+------------------+----------|
| VGA interface | CN2 | Turbo LED | J2 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN3 | IDE interface | J3 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN4 | Power LED & | J4 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Parallel port | CN5 | Reset switch | J5 |
|-------------------+----------+------------------+----------|
| VGA feature | CN6 | Speaker | J6 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN7 | 32-bit PCI bus | SL1 - |
| interface | | slots | SL3 |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN8 | Fast chassis fan | J3A1 |
| | | power | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN9 | Slow chassis fan | J4A1 |
| | | power | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Flash BIOS write protect enabled | J4A3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS write protect | J4A3 | pins 2 & 3 |
| | disabled | | closed |
|---+----------------------------------+--------+------------|
| » | Password disabled | J5A1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password enabled | J5A1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory normal operation | J5A2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J5A2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS recovery mode normal | J5A3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS recovery mode flash | J5A3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J5A4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J5A4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS setup accessible | J7J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS setup not accessible | J7J1 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (TABLE 1) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------+------------------------+---------------------|
| 10MB | (16) 512K x 9 | (2) 256K x 36 |
|-------------+------------------------+---------------------|
| 12MB | (16) 512K x 9 | (2) 512K x 36 |
|-------------+------------------------+---------------------|
| 16MB | (16) 512K x 9 | (2) 1M x 36 |
|-------------+------------------------+---------------------|
| 24MB | (16) 512K x 9 | (2) 2M x 36 |
|-------------+------------------------+---------------------|
| 40MB | (16) 512K x 9 | (2) 4M x 36 |
|-------------+------------------------+---------------------|
| 72MB | (16) 512K x 9 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: If board has 8MB factory installed, Bank 2 is not |
| present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (TABLE 2) |
|------------------------------------------------------------|
| Size | Bank 1 | Bank 2 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 512K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (TABLE 2 CON’T) |
|------------------------------------------------------------|
| Size | Bank 1 | Bank 2 |
|--------------+-----------------------+---------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|--------------+-----------------------+---------------------|
| 32MB | (2) 4M x 36 | NONE |
|--------------+-----------------------+---------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|--------------+-----------------------+---------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|--------------+-----------------------+---------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|--------------+-----------------------+---------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|--------------+-----------------------+---------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 64MB | (2) 8M x 36 | NONE |
|--------------+-----------------------+---------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|--------------+-----------------------+---------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|--------------+-----------------------+---------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|--------------+-----------------------+---------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|--------------+-----------------------+---------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|--------------+-----------------------+---------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|--------------+-----------------------+---------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|--------------+-----------------------+---------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|--------------+-----------------------+---------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|--------------+-----------------------+---------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|--------------+-----------------------+---------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: If board has Bank 1 & Bank 2 installed, the factory |
| installed 8MB is not present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+----------------------+---------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 |
|---------------+----------------------+---------------------|
| 512KB | (4) 64K x 8 | (4) 64K x 8 |
|------------------------------------------------------------|
| Note: Cache is factory installed and is not configurable. |
| Cache size depends on board version. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J5A5 |
|----------------------------+-------------------------------|
| 60MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 66MHz | pins 1 & 2 closed |
+------------------------------------------------------------+
