# INTEL CORPORATION
PENTIUM 90MHZ
Processor Pentium
Processor 90MHz
Speed
Chip Set Intel
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI bus slots (3), floppy drive interface,
IDE interfaces (2), parallel port, serial ports
(2)
NPU Options None

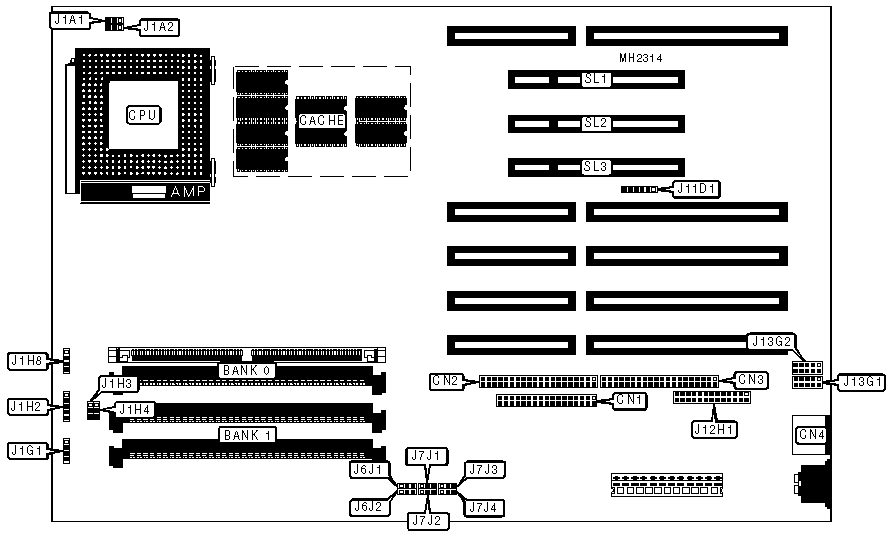

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Floppy drive | CN1 | IDE interface | J1H8 |
| interface | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface | CN2 | Speaker | J1G1 |
| (ISA bus) | | | |
|-------------------+----------+------------------+----------|
| IDE interface | CN3 | Optional power | J11D1 |
| (PCI bus) | | connector (3.3v) | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN4 | Parallel port | J12H1 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J1A1 | Serial port 1 | J13G1 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J1A2 | Serial port 2 | J13G2 |
|-------------------+----------+------------------+----------|
| Power LED & | J1H2 | 32-bit PCI bus | SL1 - |
| keylock | | slots | SL3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | J1H3 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J1H4 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J6J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J6J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS update enabled | J6J2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS update disabled | J6J2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | BIOS setup enabled | J7J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | BIOS setup disabled | J7J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash normal mode at boot | J7J2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash recovery mode at boot | J7J2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J7J3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J7J3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Password disabled | J7J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password enabled | J7J4 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 512K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|------------------------------------------------------------|
| Note: Cache is factory installed at is not configurable. |
+------------------------------------------------------------+
