# LION COMPUTERS, INC.
NICE GREEN PENTIUM PCI/ISA 60/66
Processor Pentium
Processor Speed 60/66MHz
Chip Set ALI
Max. Onboard DRAM 192MB
Cache 256/512/1024KB
BIOS AMI
Dimensions 326mm x 215mm
I/O Options 32-bit PCI slots (4), Green PC connector
NPU Options None

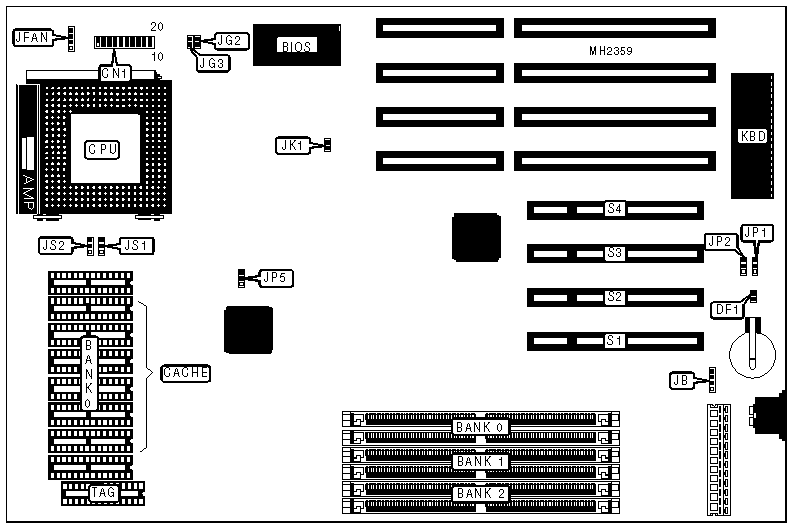

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------+--------------+-------------------+----------|
| Keylock | CN1 (pins 1 | External battery | JB |
| | - 2) | | |
|--------------+--------------+-------------------+----------|
| Power LED | CN1 (pins 3 | Chassis fan power | JFAN |
| | & 5) | | |
|--------------+--------------+-------------------+----------|
| Speaker | CN1 (pins 7 | Green PC LED | JG2 |
| | - 10) | | |
|--------------+--------------+-------------------+----------|
| Turbo LED | CN1 (pins 12 | Green PC | JG3 |
| | - 13) | connector | |
|--------------+--------------+-------------------+----------|
| Turbo switch | CN1 (pins 15 | 32-bit PCI slots | S1 - S4 |
| | - 17) | | |
|--------------+--------------+-------------------+----------|
| Reset switch | CN1 (pins 19 | | |
| | - 20) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | DF1 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JB | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JB | pins 3 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Power good signal detect from | JP1 | pins 2 & 3 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP1 | pins 1 & 2 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS voltage select 5 | JP2 | pins 2 & 3 |
| | Volts | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS voltage select 12 | JP2 | pins 1 & 2 |
| | Volts | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 4MB | (2) 512K x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 12MB | (2) 512K x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 20MB | (2) 1M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 28MB | (2) 2M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 36MB | (2) 2M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 40MB | (2) 2M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 44MB | (2) 4M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 52MB | (2) 4M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 68MB | (2) 4M x 36 | (2) 4M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 | NONE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CONTINUED) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|--------+--------------+---------------------+--------------|
| 72MB | (2) 4M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|--------+--------------+---------------------+--------------|
| 72MB | (2) 8M x 36 | (2) 512K x 36 | (2) 512K x |
| | | | 36 |
|--------+--------------+---------------------+--------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 | NONE |
|--------+--------------+---------------------+--------------|
| 76MB | (2) 8M x 36 | (2) 1M x 36 | (2) 512K x |
| | | | 36 |
|--------+--------------+---------------------+--------------|
| 80MB | (2) 4M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|--------+--------------+---------------------+--------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|--------+--------------+---------------------+--------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | NONE |
|--------+--------------+---------------------+--------------|
| 84MB | (2) 8M x 36 | (2) 2M x 36 | (2) 512K x |
| | | | 36 |
|--------+--------------+---------------------+--------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|--------+--------------+---------------------+--------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|--------+--------------+---------------------+--------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|--------+--------------+---------------------+--------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | NONE |
|--------+--------------+---------------------+--------------|
| 100MB | (2) 8M x 36 | (2) 4M x 36 | (2) 512K x |
| | | | 36 |
|--------+--------------+---------------------+--------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|--------+--------------+---------------------+--------------|
| 112MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|--------+--------------+---------------------+--------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|--------+--------------+---------------------+--------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | NONE |
|--------+--------------+---------------------+--------------|
| 132MB | (2) 8M x 36 | (2) 8M x 36 | (2) 512K x |
| | | | 36 |
|--------+--------------+---------------------+--------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|--------+--------------+---------------------+--------------|
| 144MB | (2) 8M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|--------+--------------+---------------------+--------------|
| 160MB | (2) 8M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------------------------------------------------------|
| Note: DRAM max is limited to 160MB due to chipset |
| limitations. Only 2 32MB SIMMs may be in place |
| |
| at any given time. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Tag |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | 8,16,or 32K x 8 |
|------------------+--------------------+--------------------|
| 512KB | (8) 64K x 8 | 16,or 32K x 8 |
|------------------+--------------------+--------------------|
| 1MB | (8) 128K x 8 | 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS2 |
|------------------+--------------------+--------------------|
| 256KB | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 512KB | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 1MB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JK1 |
|------------------------------+-----------------------------|
| 60MHz | Open |
|------------------------------+-----------------------------|
| 66MHz | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADS SIGNAL DELAY |
|------------------------------------------------------------|
| Setting | JP5 |
|------------------------------+-----------------------------|
| Disabled (0 wait) | pins 1 & 2 closed |
|------------------------------+-----------------------------|
| Enabled (1 wait) | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note:The Pentium chip runs extremly hot, always use a heat |
| sink. |
+------------------------------------------------------------+
