# LION COMPUTERS, INC.
NICE PENTIUM PCI/ISA 90/100
Processor Pentium
Processor Speed 90/100MHz
Chip Set Intel
Max. Onboard DRAM 128MB
Cache 256/512KB
BIOS Award
Dimensions 326mm x 215mm
I/O Options 32-bit PCI slots (4)
NPU Options None

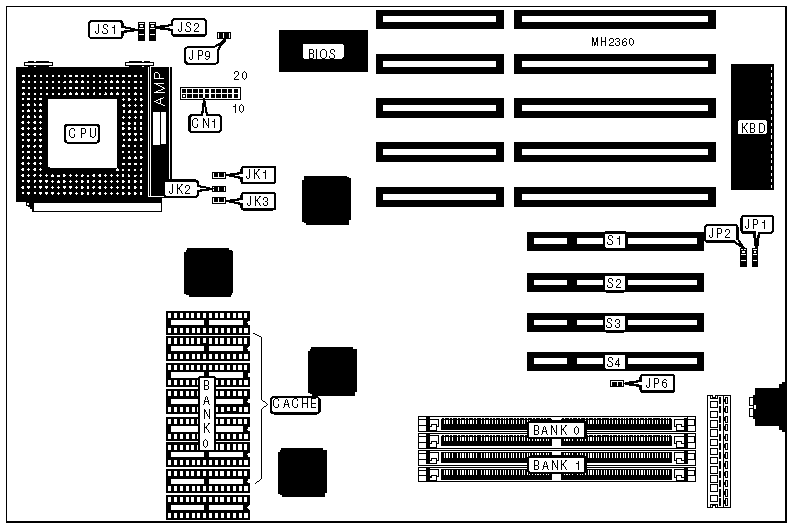

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------+--------------+---------------------+-----------|
| Keylock | CN1 (pins 1 | Turbo switch | CN1 (pins |
| | - 2) | | 15 - 17) |
|-----------+--------------+---------------------+-----------|
| Power LED | CN1 (pins 3 | Reset switch | CN1 (pins |
| | & 5) | | 19 - 20) |
|-----------+--------------+---------------------+-----------|
| Speaker | CN1 (pins 7 | 32-bit PCI bus | S1 - S4 |
| | - 10) | slots | |
|-----------+--------------+---------------------+-----------|
| Turbo LED | CN1 (pins 12 | | |
| | - 13) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JK3 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Slot 1/edge trigger INT select | JP1 | pins 2 & 3 |
| | level | | closed |
|---+----------------------------------+--------+------------|
| | Slot 1/edge trigger INT select | JP1 | pins 1 & 2 |
| | edge | | closed |
|---+----------------------------------+--------+------------|
| » | Slot 2/edge trigger INT select | JP2 | pins 2 & 3 |
| | level | | closed |
|---+----------------------------------+--------+------------|
| | Slot 2/edge trigger INT select | JP2 | pins 1 & 2 |
| | edge | | closed |
|---+----------------------------------+--------+------------|
| » | NCR 83C810 installed in slot 1 | JP6 | Closed |
|---+----------------------------------+--------+------------|
| | NCR 83C810 not installed | JP6 | Open |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP9 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP9 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|----------------------------+-------------------------------|
| 512KB | (8) 64K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS2 |
|------------------+--------------------+--------------------|
| 256KB | pins 1 & 2 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 512KB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JK1 | JK2 |
|--------------------+-------------------+-------------------|
| 90MHz | Closed | Closed |
|--------------------+-------------------+-------------------|
| 100MHz | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note:The Pentium chip runs extremly hot, always use a heat |
| sink. |
+------------------------------------------------------------+
