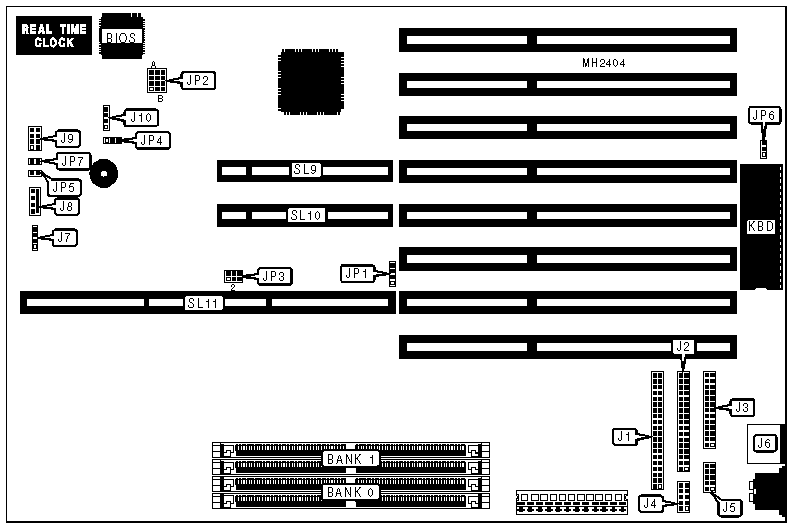

# ICL
ERGOPRO E5
Processor Pentium
Processor 33/40/50/60/66 (internal)/80 (internal) MHz
Speed
Chip Set OPTI
Max. Onboard 128MB
DRAM
Max. Cache 256KB/1MB
BIOS ICL
Dimensions 330mm x 218mm
I/O Options CPU slot, 32-bit VESA local bus slots (2), floppy
drive interface, IDE interface, SCSI interface
(optional), parallel port, PS/2 mouse port,
serial ports (2)
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| IDE interface | J1 | Hard drive LED | J7 |
|------------------+----------+-------------------+----------|
| Floppy drive | J2 | CPU fan | J8 |
| interface | | | |
|------------------+----------+-------------------+----------|
| Parallel port | J3 | Power LED | J9 |
|------------------+----------+-------------------+----------|
| Serial port 1 | J4 | External speaker | J10 |
|------------------+----------+-------------------+----------|
| Serial port 2 | J5 | 32-bit VESA local | SL9 & |
| | | bus slots | SL10 |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | J6 | CPU riser slot | SL11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS | |
|-------------------------------------------------+----------|
| | Function | Jumper | Position |
|-------------------------+----------+------------+----------|
| | On-board SCSI | JP1 | Closed | |
| | disabled | | | |
|---+---------------------+----------+------------| |
| | On-board SCSI | JP1 | Open | |
| | enabled | | | |
|---+---------------------+----------+------------| |
| | Dallas CMOS chip | JP2/A | Closed | |
| | installed | | | |
|---+---------------------+----------+------------| |
| | Benchmark CMOS chip | JP2/B | Closed | |
| | installed | | | |
|---+---------------------+----------+------------| |
| | 1 local bus wait | JP3 | Pins 2 & 3 | |
| | state | | closed | |
|---+---------------------+----------+------------| |
| | 0 local bus wait | JP3 | Pins 1 & 2 | |
| | states | | closed | |
|---+---------------------+----------+------------| |
| | Factory configured | JP3 | Pins 5 & 6 | |
| | - do not alter | | closed | |
|---+---------------------+----------+------------| |
| | On board speaker | JP4 | Pins 2 & 3 | |
| | enabled | | closed | |
|---+---------------------+----------+------------| |
| | External speaker | JP4 | Pins 1 & 2 | |
| | enabled | | closed | |
|---+---------------------+----------+------------| |
| | Housing type A | JP5 | Closed | |
|---+---------------------+----------+------------| |
| | Housing type B | JP5 | Open | |
|---+---------------------+----------+------------| |
| | System setup | JP6 | Pins 2 & 3 | |
| | unlocked | | closed | |
|---+---------------------+----------+------------| |
| | System setup locked | JP6 | Pins 1 & 2 | |
| | | | closed | |
|---+---------------------+----------+------------| |
| | Reset button | JP7 | Closed | |
| | enabled | | | |
|---+---------------------+----------+------------| |
| | Reset button | JP7 | Open | |
| | disabled | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
IMG IMG 2
E5 CPU RISER CARD
+------------------------------------------------------------+
| SYSTEM SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP4 |
|--------------------------+---------------------------------|
| 33MHz | Pins 1 & 2, 4 & 5, 8 & 9 closed |
|--------------------------+---------------------------------|
| 40MHz | Pins 2 & 3, 5 & 6, 7 & 8 closed |
|--------------------------+---------------------------------|
| 50MHz | Pins 1 & 2, 5 & 6, 7 & 8 closed |
|--------------------------+---------------------------------|
| 60MHz | Pins 2 & 3, 4 & 5, 7 & 8 closed |
|--------------------------+---------------------------------|
| 66i MHz | Pins 2 & 3, 4 & 5, 7 & 8 closed |
|--------------------------+---------------------------------|
| 80i MHz | Pins 1 & 2, 4 & 5, 7 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP3 | JP4 |
|-------+--------------------------+-------------------------|
| 256KB | Open | Open |
|-------+--------------------------+-------------------------|
| 1MB | Pins 1 & 2, 3 & 4 closed | Pins 1 & 2, 3 & 4 |
| | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|---------+----------------+----------------+----------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | Unidentified |
|---------+----------------+----------------+----------------|
| 1MB | (4) 128K x 8 | (4) 128K x 8 | Unidentified |
|------------------------------------------------------------|
| Note: The locations of Bank 0 and Bank 1 are unidentified. |
+------------------------------------------------------------+
