# INTEL CORPORATION
PREMIERE/PCI LC
Processor Pentium
Processor 60/66MHz
Speed
Chip Set Intel
Max. Onboard 136MB
DRAM
Cache 256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots on riser card (2), floppy drive
interface, green PC connector, IDE interfaces
(2), parallel port, PS/2 mouse port, serial ports
(2), VESA feature connector, VGA port
NPU Options None

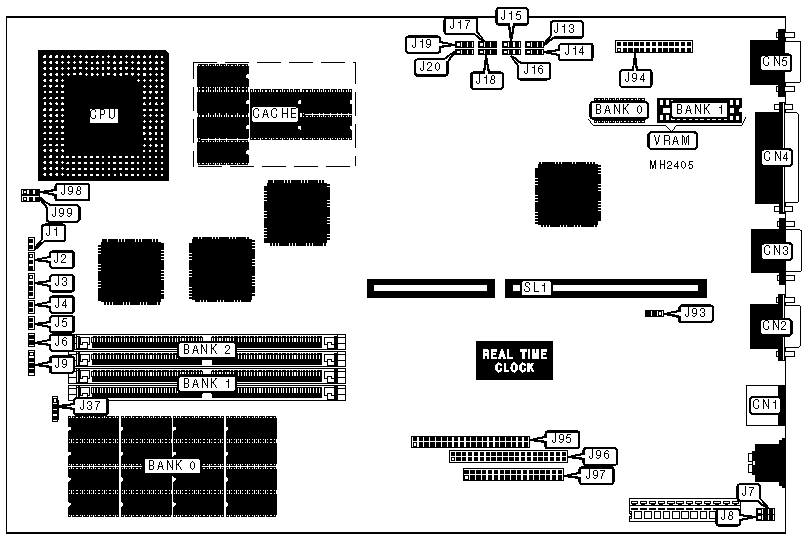

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN1 | Green PC | J6 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | Speaker | J9 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN3 | Auxiliary power | J93 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | CN4 | VESA feature | J94 |
| | | connector | |
|-------------------+----------+------------------+----------|
| VGA port | CN5 | IDE interface | J95 |
| | | (PCI) | |
|-------------------+----------+------------------+----------|
| Reset switch | J1 | IDE interface | J96 |
| | | (ISA) | |
|-------------------+----------+------------------+----------|
| Power LED | J2 | Floppy drive | J97 |
| | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface LED | J3 | Chassis fan | J98 |
| | | power (12v) | |
|-------------------+----------+------------------+----------|
| Turbo LED | J4 | Chassis fan | J99 |
| | | power (10v) | |
|-------------------+----------+------------------+----------|
| Keylock | J5 | Riser Card | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | J8 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J13 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J15 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J15 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Password enabled | J16 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password disabled | J16 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash boot normal mode | J17 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash boot recovery mode | J17 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS write protect | J18 | pins 1 & 2 |
| | disabled | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS write protect enabled | J18 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J19 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J19 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS setup enabled | J20 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS setup disabled | J20 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | On board speaker enabled | J37 | pins 3 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | On board speaker disabled | J37 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 10MB | (8) 481000 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 12MB | (8) 481000 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 12MB | (8) 481000 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 14MB | (8) 481000 | (2) 256K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 14MB | (8) 481000 | (2) 512K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (8) 481000 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (8) 481000 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 18MB | (8) 481000 | (2) 256K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (8) 481000 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (8) 481000 | (2) 512K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (8) 481000 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (8) 481000 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+--------------+-----------------+-----------------|
| 24MB | (8) 481000 | (2) 2M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 26MB | (8) 481000 | (2) 256K x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 26MB | (8) 481000 | (2) 2M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 28MB | (8) 481000 | (2) 512K x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 28MB | (8) 481000 | (2) 2M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 32MB | (8) 481000 | (2) 1M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 32MB | (8) 481000 | (2) 2M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 40MB | (8) 481000 | (2) 2M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 40MB | (8) 481000 | (2) 4M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 42MB | (8) 481000 | (2) 256K x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 42MB | (8) 481000 | (2) 4M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 44MB | (8) 481000 | (2) 512K x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 44MB | (8) 481000 | (2) 4M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 48MB | (8) 481000 | (2) 1M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 48MB | (8) 481000 | (2) 4M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 56MB | (8) 481000 | (2) 2M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 56MB | (8) 481000 | (2) 4M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 72MB | (8) 481000 | (2) 4M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 72MB | (8) 481000 | (2) 8M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 74MB | (8) 481000 | (2) 256K x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 74MB | (8) 481000 | (2) 8M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 76MB | (8) 481000 | (2) 512K x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 76MB | (8) 481000 | (2) 8M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 80MB | (8) 481000 | (2) 1M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 80MB | (8) 481000 | (2) 8M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 88MB | (8) 481000 | (2) 2M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 88MB | (8) 481000 | (2) 8M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 104MB | (8) 481000 | (2) 4M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 104MB | (8) 481000 | (2) 8M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 136MB | (8) 481000 | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|------------------------------------------------------------|
| Note: Cache is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J14 |
|----------------------------+-------------------------------|
| 60MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 66MHz | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | J7 |
|------------------------------+-----------------------------|
| 5.00v (60MHz CPU) | pins 1 & 2 closed |
|------------------------------+-----------------------------|
| 5.25v (66MHz CPU) | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 1MB | (1) 481000 | NONE |
|----------------+---------------------+---------------------|
| 2MB | (1) 481000 | (1) 481000 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
