# INTEL CORPORATION
PREMIERE/PCI LX
Processor Pentium
Processor 90MHz
Speed
Chip Set SMC
Max. Onboard 136MB
DRAM
Cache 256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots on riser card (2), floppy drive
interface, IDE interfaces (2), parallel port,
PS/2 mouse port, serial ports (2), VESA feature
connector, VGA port
NPU Options None

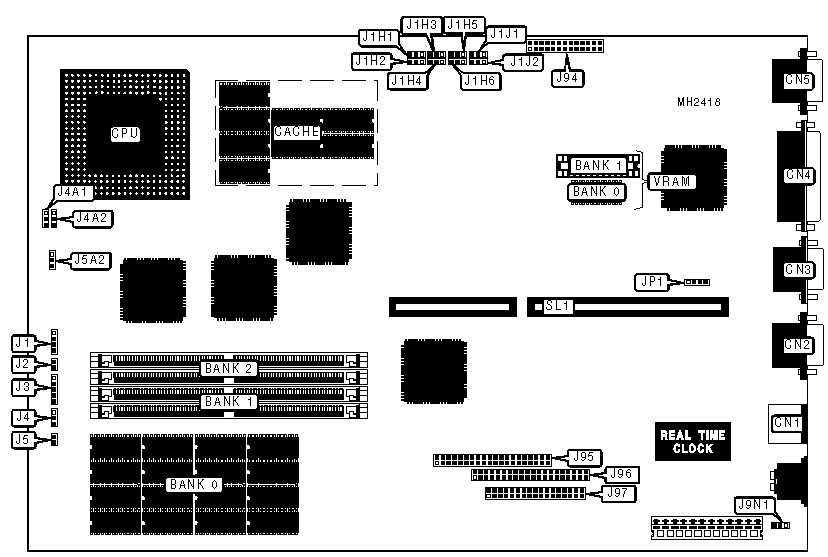

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN1 | Chassis fan power | J4A1 |
| | | (fast fan) | |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN2 | Chassis fan power | J4A2 |
| | | (slow fan) | |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN3 | Turbo switch | J5A2 |
|------------------+----------+-------------------+----------|
| Parallel port | CN4 | VESA feature | J94 |
| | | connector | |
|------------------+----------+-------------------+----------|
| VGA port | CN5 | IDE interface | J95 |
| | | (PCI) | |
|------------------+----------+-------------------+----------|
| Speaker | J1 | IDE interface | J96 |
| | | (ISA) | |
|------------------+----------+-------------------+----------|
| Reset switch | J2 | Floppy drive | J97 |
| | | interface | |
|------------------+----------+-------------------+----------|
| Power LED & | J3 | Auxiliary power | JP1 |
| keylock | | connnector | |
|------------------+----------+-------------------+----------|
| IDE interface | J4 | Riser Card | SL1 |
| LED | | | |
|------------------+----------+-------------------+----------|
| Turbo LED | J5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | BIOS recovery disabled | J1H1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | BIOS recovery enabled | J1H1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | BIOS upgrade in flash enabled | J1H2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | BIOS upgrade in flash disabled | J1H2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Setup enter at boot up enabled | J1H3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Setup enter at boot up disabled | J1H3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Password disabled | J1H4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password enabled | J1H4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J1H5 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J1H5 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J1H6 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J1H6 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J1J1 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J1J2 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J9N1 | pins 1 & 2 |
| | alter | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 10MB | (8) 481000 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 12MB | (8) 481000 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 12MB | (8) 481000 | (2) 512K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 14MB | (8) 481000 | (2) 256K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 14MB | (8) 481000 | (2) 512K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (8) 481000 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (8) 481000 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 18MB | (8) 481000 | (2) 256K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (8) 481000 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (8) 481000 | (2) 512K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (8) 481000 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (8) 481000 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+--------------+-----------------+-----------------|
| 24MB | (8) 481000 | (2) 2M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 26MB | (8) 481000 | (2) 256K x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 26MB | (8) 481000 | (2) 2M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 28MB | (8) 481000 | (2) 512K x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 28MB | (8) 481000 | (2) 2M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 32MB | (8) 481000 | (2) 1M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 32MB | (8) 481000 | (2) 2M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 40MB | (8) 481000 | (2) 2M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 40MB | (8) 481000 | (2) 4M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 42MB | (8) 481000 | (2) 256K x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 42MB | (8) 481000 | (2) 4M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 44MB | (8) 481000 | (2) 512K x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 44MB | (8) 481000 | (2) 4M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 48MB | (8) 481000 | (2) 1M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 48MB | (8) 481000 | (2) 4M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 56MB | (8) 481000 | (2) 2M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 56MB | (8) 481000 | (2) 4M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 72MB | (8) 481000 | (2) 4M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 72MB | (8) 481000 | (2) 8M x 36 | NONE |
|---------+--------------+-----------------+-----------------|
| 74MB | (8) 481000 | (2) 256K x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 74MB | (8) 481000 | (2) 8M x 36 | (2) 256K x 36 |
|---------+--------------+-----------------+-----------------|
| 76MB | (8) 481000 | (2) 512K x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 76MB | (8) 481000 | (2) 8M x 36 | (2) 512K x 36 |
|---------+--------------+-----------------+-----------------|
| 80MB | (8) 481000 | (2) 1M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 80MB | (8) 481000 | (2) 8M x 36 | (2) 1M x 36 |
|---------+--------------+-----------------+-----------------|
| 88MB | (8) 481000 | (2) 2M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 88MB | (8) 481000 | (2) 8M x 36 | (2) 2M x 36 |
|---------+--------------+-----------------+-----------------|
| 104MB | (8) 481000 | (2) 4M x 36 | (2) 8M x 36 |
|---------+--------------+-----------------+-----------------|
| 104MB | (8) 481000 | (2) 8M x 36 | (2) 4M x 36 |
|---------+--------------+-----------------+-----------------|
| 136MB | (8) 481000 | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|------------------------------------------------------------|
| Note: Cache is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (1) 1024K x 8 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (1) 1024K x 8 | (1) 1024K x 8 |
+------------------------------------------------------------+
