# INTEL CORPORATION
CLASSIC/PCI LPX
Processor 80486SX/80486SX2/80486DX2/80486DX4/Pentium
Overdrive
Processor 25/50(internal)/66(internal)/100(internal)MHz
Speed
Chip Set Intel
Max. Onboard 64MB
DRAM
Cache 128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots on riser card (2), floppy drive
interface, IDE interface, parallel port, PS/2
mouse pobt, serial ports (2), VESA feature
connector, VGA port
NPU Options None

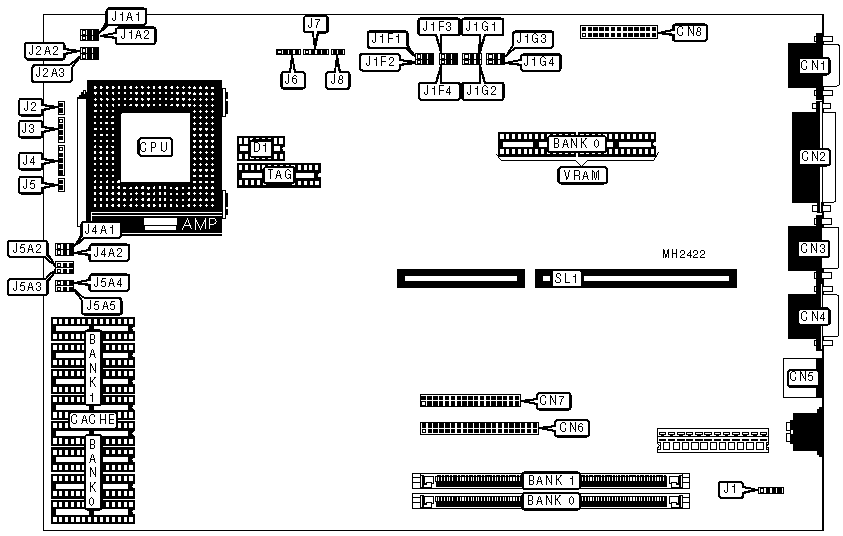

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| VGA port | CN1 | Turbo LED | J2 |
|----------------------+----------+---------------+----------|
| Parallel port | CN2 | IDE interface | J3 |
| | | LED | |
|----------------------+----------+---------------+----------|
| Serial port 2 | CN3 | Power LED & | J4 |
| | | keylock | |
|----------------------+----------+---------------+----------|
| Serial port 1 | CN4 | Reset switch | J5 |
|----------------------+----------+---------------+----------|
| PS/2 mouse port | CN5 | Chassis fan | J6 |
| | | power | |
|----------------------+----------+---------------+----------|
| IDE interface | CN6 | Speaker | J7 |
|----------------------+----------+---------------+----------|
| Floppy drive | CN7 | Turbo switch | J8 |
| interface | | | |
|----------------------+----------+---------------+----------|
| VESA feature | CN8 | Riser Card | SL1 |
| connector | | | |
|----------------------+----------+---------------+----------|
| Auliliary power | J1 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Password enabled | J1F3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password disabled | J1F3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J1F4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J1F4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J1G1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J1G1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Setup entry enabled | J1G2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Setup entry disabled | J1G2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS write protect enabled | J1G3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS write protect | J1G3 | pins 2 & 3 |
| | disabled | | closed |
|---+----------------------------------+--------+------------|
| » | Normal boot enabled | J1G4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Recovery boot enabled | J1G4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J4A1 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Pentium Overdrive cache disabled | J4A2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Pentium Overdrive cache enabled | J4A2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CPU type select SL-enhanced | J5A2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU type select non SL-enhanced | J5A2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CPU type select non SX processor | J5A3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU type select SX processor | J5A3 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | NONE | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 1MB | (1) 256K x 36 | NONE |
|------------------+--------------------+--------------------|
| 2MB | NONE | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 2MB | (1) 256K x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 2MB | (1) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 3MB | (1) 256K x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 3MB | (1) 512K x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 4MB | NONE | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 4MB | (1) 512K x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 4MB | (1) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (1) 256K x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 5MB | (1) 1M x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (1) 512K x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 6MB | (1) 1M x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | NONE | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 8MB | (1) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 9MB | (1) 256K x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 9MB | (1) 2M x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (1) 512K x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 10MB | (1) 2M x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (1) 1M x 36 | (1) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 12MB | (1) 2M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | NONE | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (1) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (1) 256K x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 17MB | (1) 4M x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 18MB | (1) 512K x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 18MB | (1) 4M x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (1) 4M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (1) 4M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | NONE | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (1) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 33MB | (1) 256K x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 33MB | (1) 8M x 36 | (1) 256K x 36 |
|------------------+--------------------+--------------------|
| 34MB | (1) 512K x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (1) 8M x 36 | (1) 512K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (1) 1M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (1) 8M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (1) 2M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (1) 8M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (1) 8M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 36 | (1) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | D1 | TAG |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | (1) 16K x | (1) 32K x |
| | | | 1 | 8 |
|-------+-------------+------------+------------+------------|
| 256KB | (4) 32K x 8 | (4) 32K x | (1) 16K x | (1) 32K x |
| | | 8 | 1 | 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J5A4 | J5A5 |
|------------------+--------------------+--------------------|
| 128KB | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 256KB | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Type | J1A1 | J1A2 | J2A2 | J2A3 |
|------+--------------+------------+------------+------------|
| 5.0v | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|------+--------------+------------+------------+------------|
| 3.3v | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J1F1 | J1F2 |
|------------------+--------------------+--------------------|
| 25MHz | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 33MHz | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 50iMHz | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 66iMHz | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 100iMHz | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY UPGRADE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|-------------------------+----------------------------------|
| 2MB | (2) 256K x 16 |
|------------------------------------------------------------|
| Note: This board has 1MB factory installed. The location |
| is unidentified. |
+------------------------------------------------------------+
