# INTEL CORPORATION
PTI-5 ADVANCED/ZP
Processor Pentium
Processor 50/60MHz
Speed
Chip Set Intel
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS AMI
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (3), green PC connector, floppy
drive interface, IDE interfaces (2), parallel
port, serial ports (2)
NPU Options None

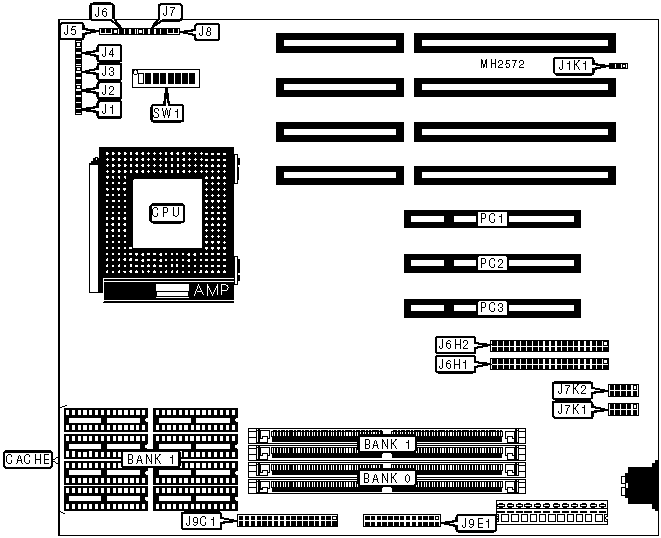

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Green PC | J1 | IDE interface | J6H1 |
| connector | | (primary) | |
|---------------+----------+----------------------+----------|
| Infra red | J2 | IDE interface | J6H2 |
| connector | | (secondary) | |
|---------------+----------+----------------------+----------|
| Chassis fan | J3 | Serial port 1 | J7K1 |
| power | | | |
|---------------+----------+----------------------+----------|
| Speaker | J4 | Serial port 2 | J7K2 |
|---------------+----------+----------------------+----------|
| Turbo LED | J5 | Floppy drive | J9C1 |
| | | interface | |
|---------------+----------+----------------------+----------|
| IDE interface | J6 | Parallel port | J9E1 |
| LED | | | |
|---------------+----------+----------------------+----------|
| Power LED & | J7 | 32-bit PCI slots | PC1 - |
| keylock | | | PC3 |
|---------------+----------+----------------------+----------|
| Reset switch | J8 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | Recovery boot enabled | J1K1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Recovery boot disabled | J1K1 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | ISA bus speed select 1/3 | SW1/1 | Off |
|---+---------------------------+---------------+------------|
| | ISA bus speed select 1/4 | SW1/1 | On |
|---+---------------------------+---------------+------------|
| » | Processor voltage | SW1/2 | Off |
| | regulator select VR type | | |
| | processor | | |
|---+---------------------------+---------------+------------|
| | Processor voltage | SW1/2 | On |
| | regulator select VRE type | | |
| | processor | | |
|---+---------------------------+---------------+------------|
| » | Password normal operation | SW1/3 | Off |
|---+---------------------------+---------------+------------|
| | Password clear | SW1/3 | On |
|---+---------------------------+---------------+------------|
| » | CMOS memory normal | SW1/4 | Off |
| | operation | | |
|---+---------------------------+---------------+------------|
| | CMOS memory clear | SW1/4 | On |
|---+---------------------------+---------------+------------|
| » | Setup entry enabled | SW1/5 | Off |
|---+---------------------------+---------------+------------|
| | Setup entry disabled | SW1/5 | On |
|---+---------------------------+---------------+------------|
| » | Internal clock speed | SW1/6 | Off |
| | select 3/2x | | |
|---+---------------------------+---------------+------------|
| | Internal clock speed | SW1/6 | On |
| | select 2x | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | NONE | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | NONE | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | NONE | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | NONE | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 1 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | SW1/7 | SW1/8 |
|--------------------+--------------------+------------------|
| 50MHz | Off | Off |
|--------------------+--------------------+------------------|
| 60MHz | On | Off |
+------------------------------------------------------------+
