# LEADING TECHNOLOGY
6800SX
Processor 80386SX
Processor 16MHz
Speed
Chip Set Unidentified
Max. Onboard 16MB
DRAM
Cache None
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, PS/2 mouse port, serial port, VGA port
NPU Options 80387SX

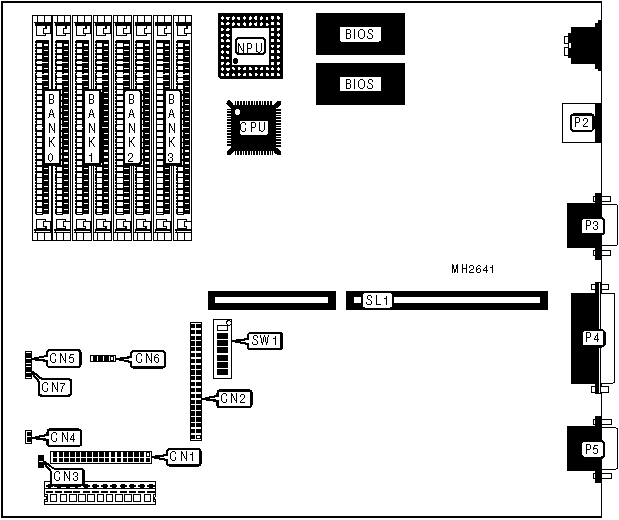

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Floppy drive | CN1 | Reset switch | CN7 |
| interface | | | |
|--------------------+----------+-----------------+----------|
| IDE interface | CN2 | PS/2 mouse port | P2 |
|--------------------+----------+-----------------+----------|
| Power LED | CN3 | Serial port | P3 |
|--------------------+----------+-----------------+----------|
| External battery | CN4 | Parallel port | P4 |
|--------------------+----------+-----------------+----------|
| Turbo switch | CN5 | VGA port | P5 |
|--------------------+----------+-----------------+----------|
| IDE interface LED | CN6 | Riser Card | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Switch | Position |
|----------------------------------------+--------+----------|
| » | Write buffer disabled | SW1/4 | Off |
|---+------------------------------------+--------+----------|
| | Write buffer enabled | SW1/4 | On |
|---+------------------------------------+--------+----------|
| » | Bit mode select 8-bit mode | SW1/5 | Off |
|---+------------------------------------+--------+----------|
| | Bit mode select 16-bit mode | SW1/5 | On |
|---+------------------------------------+--------+----------|
| » | Video mode switching select PC/AT | SW1/6 | Off |
|---+------------------------------------+--------+----------|
| | Video mode switching select PS/2 | SW1/6 | On |
|---+------------------------------------+--------+----------|
| » | Video type select PS/2 compatible | SW1/7 | Off |
|---+------------------------------------+--------+----------|
| | Video type select oldeer multi | SW1/7 | On |
| | frequency | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 4M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 | SW1/3 |
|-----------------------+------------+-----------+-----------|
| On board VGA enabled | On | On | Off |
|-----------------------+------------+-----------+-----------|
| On board VGA disabled | Off | Off | On |
+------------------------------------------------------------+
